For an OE-quality auxiliary lightbar installation, the Lazer Grille Integration Kits include custom-designed mounting brackets that facilitate the quick and seamless fitting of Lazer High Performance LED lightbars into the front grilles of popular road cars, pick-up trucks, and light commercial vehicles. Crafted to complement each vehicle's original styling, the integrated setup is robust, secure, and features added anti-theft protection.

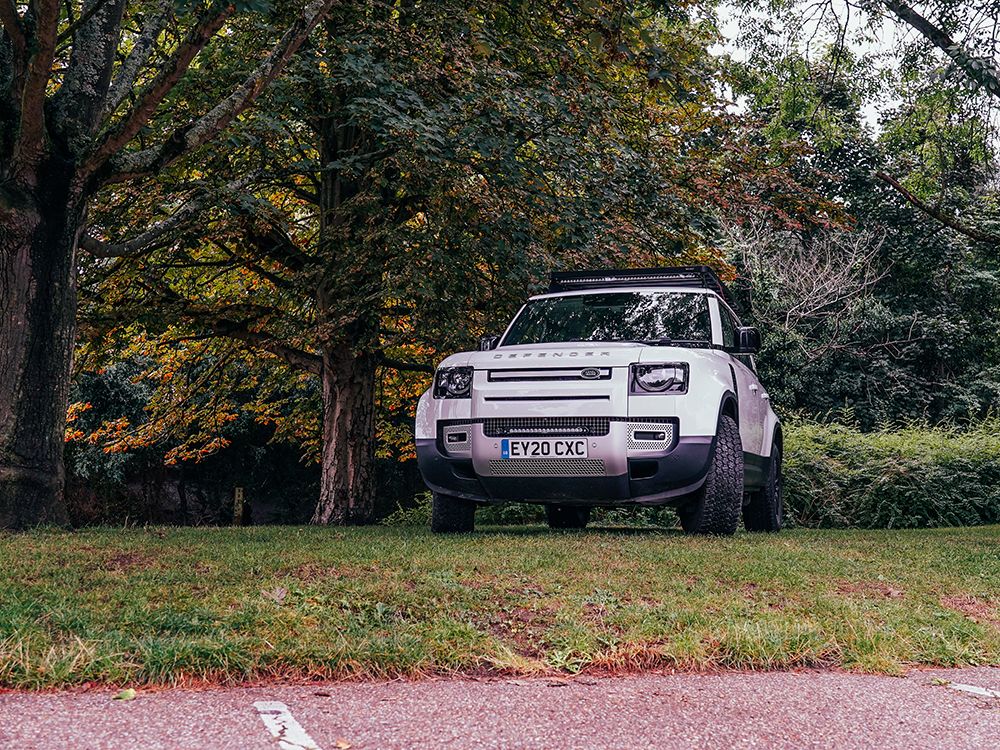

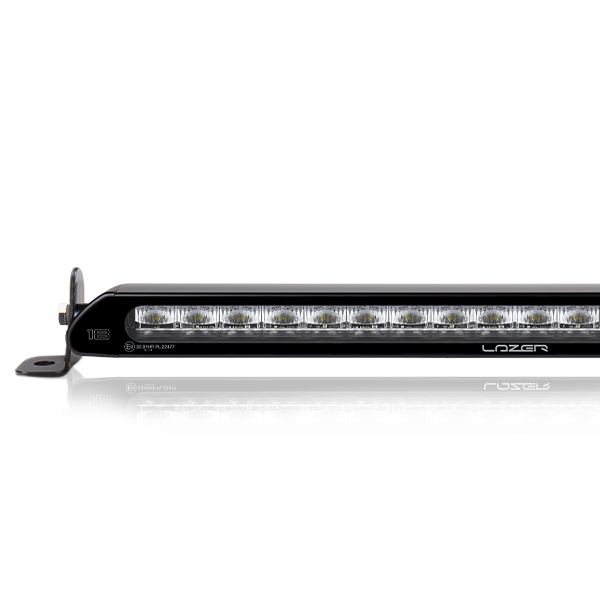

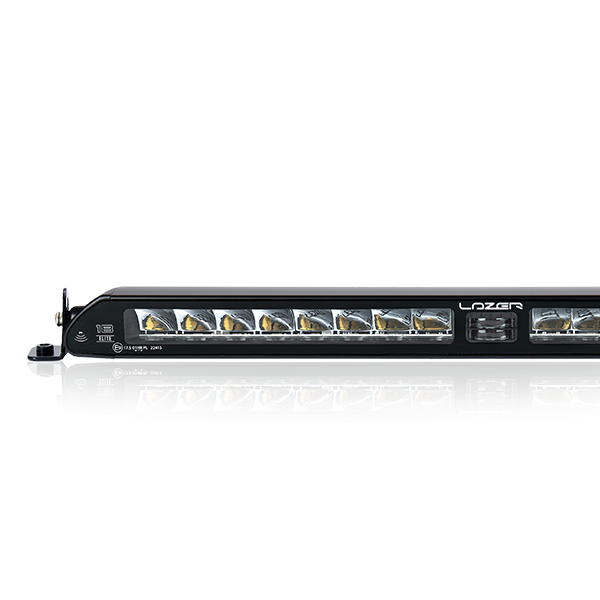

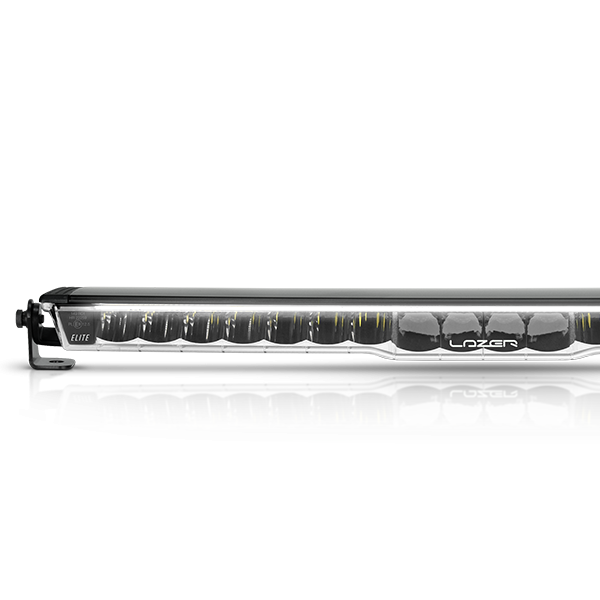

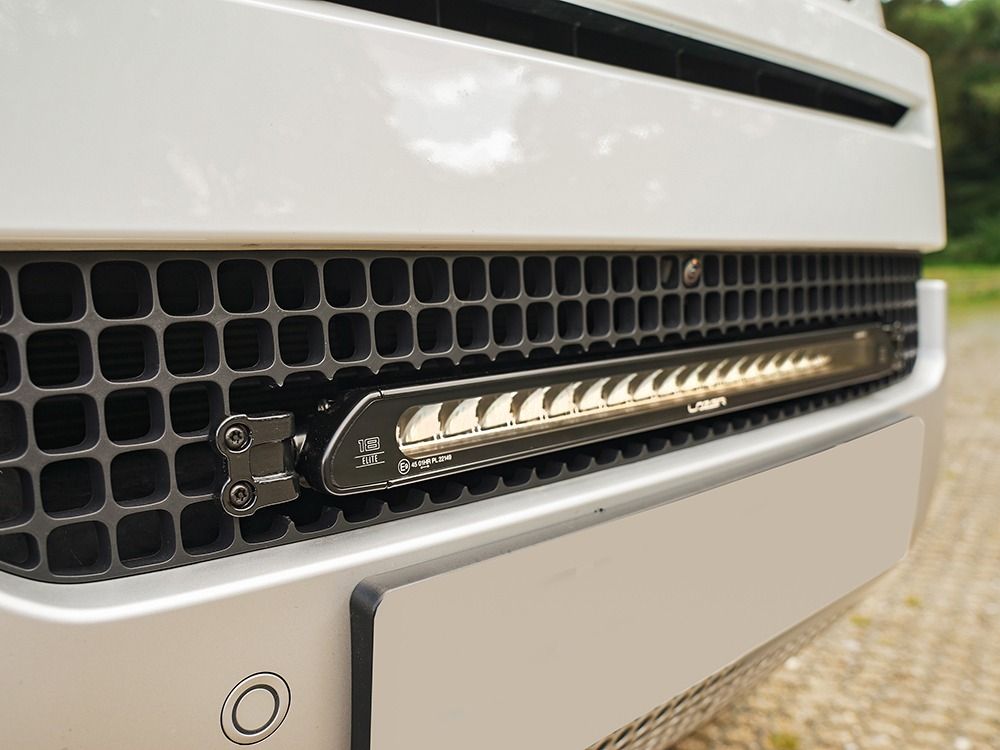

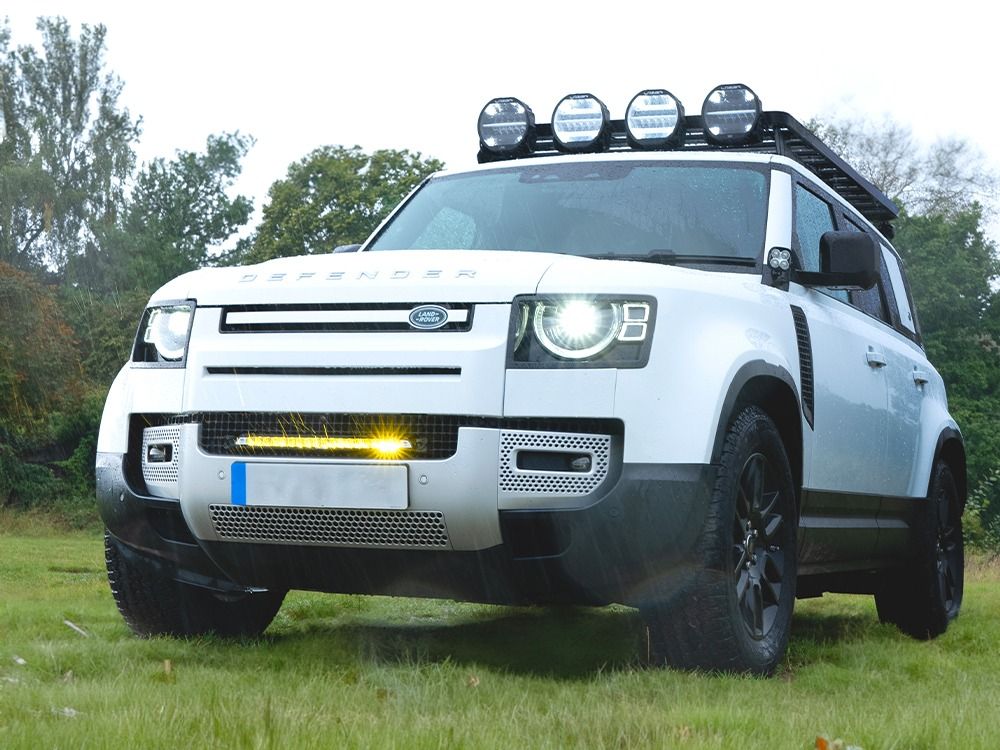

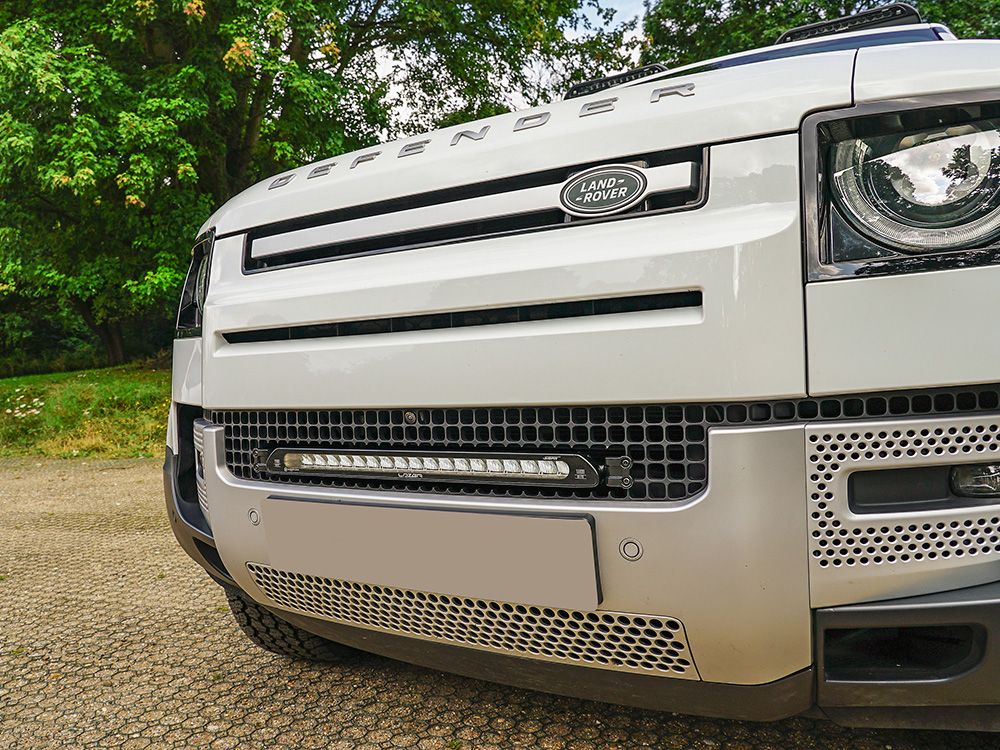

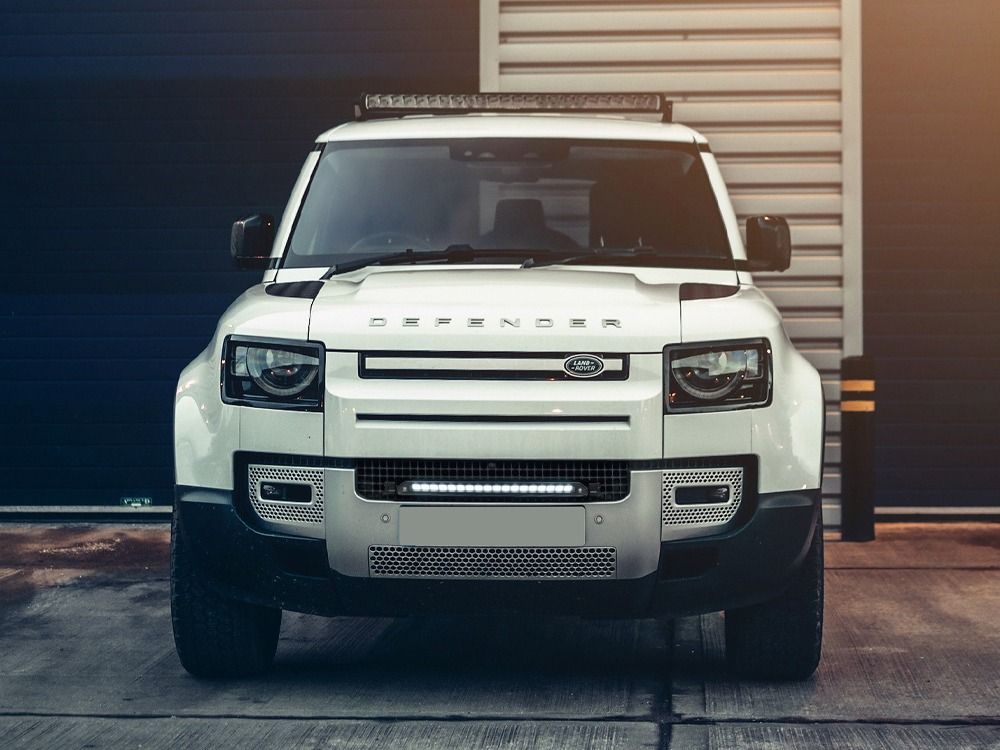

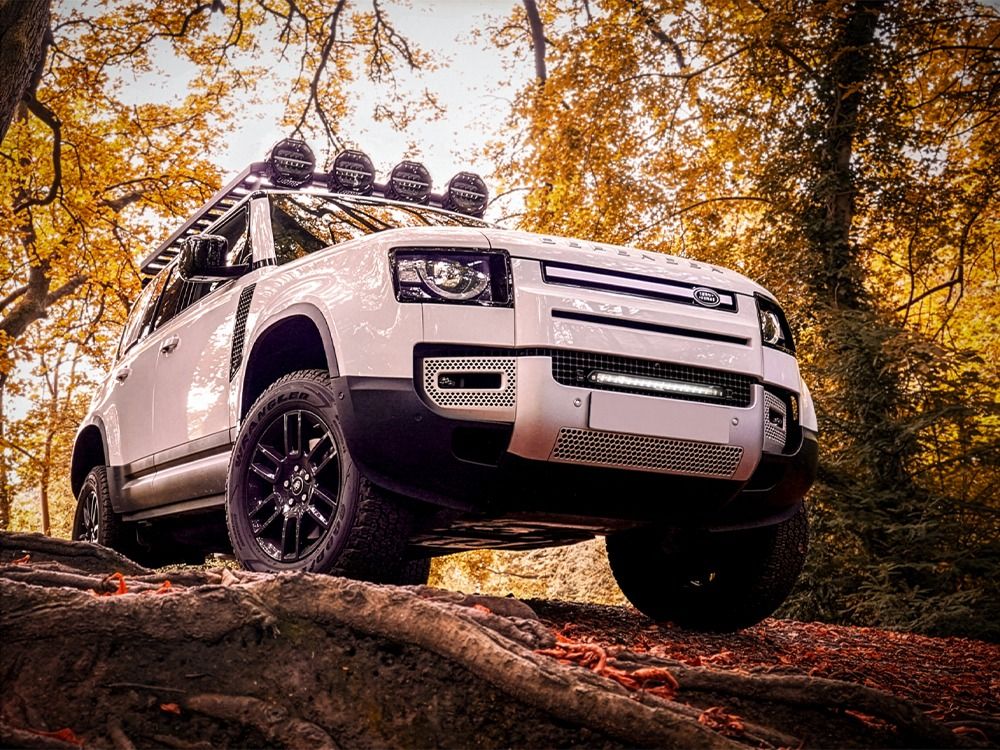

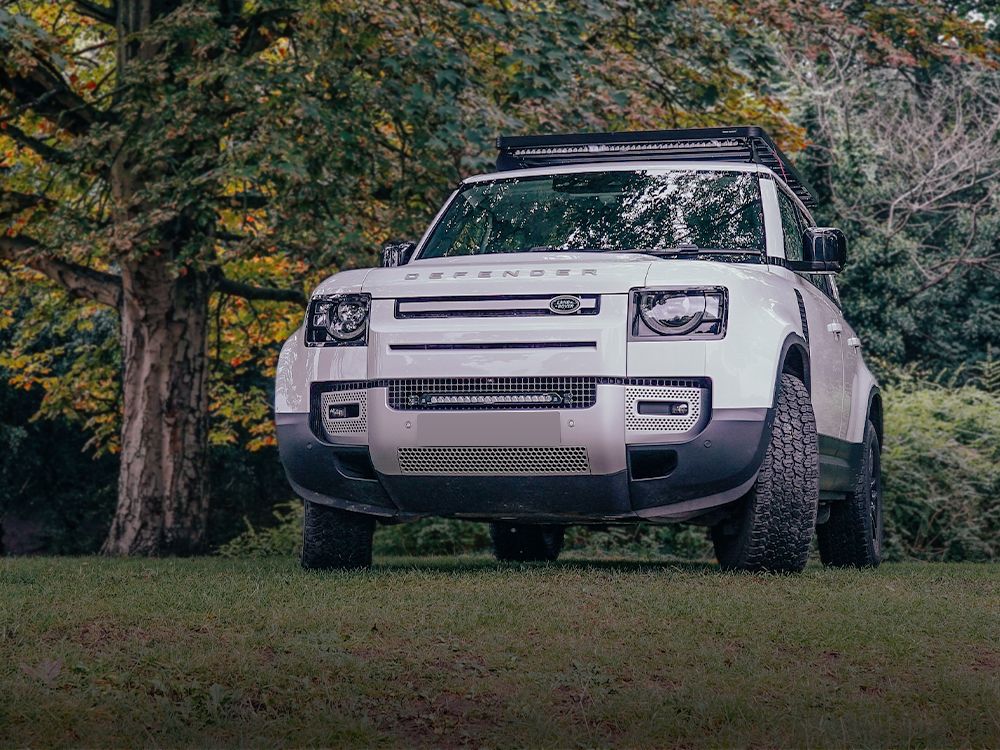

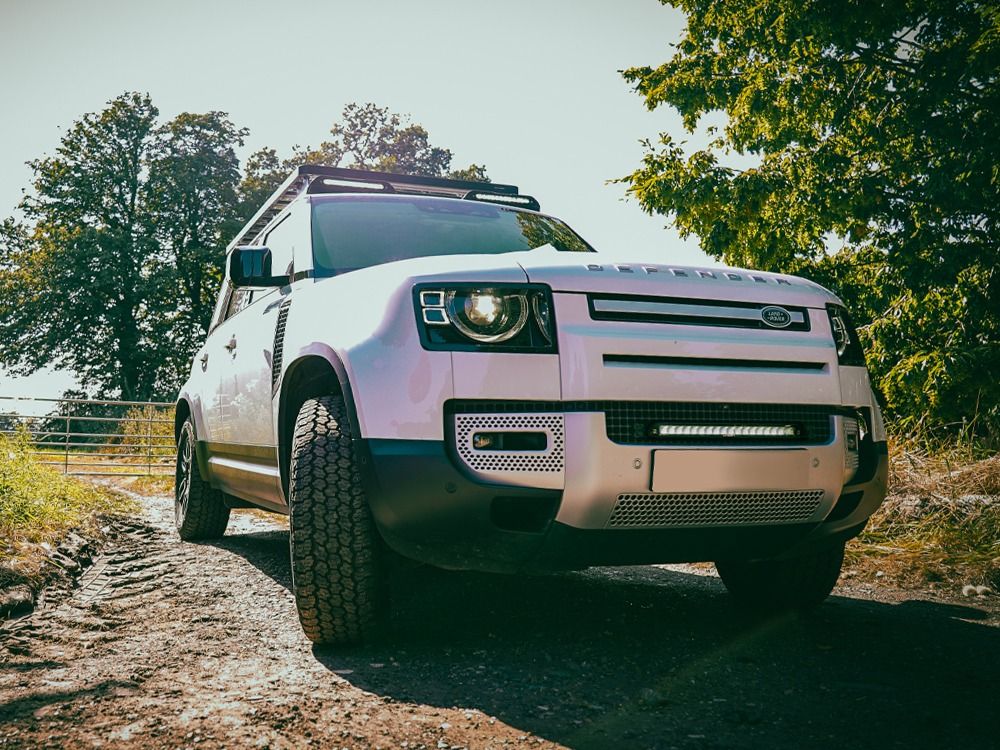

The Land Rover Defender (2020+) Grille Integration Kit features your choice of Glide (Standard/Elite – with or without Position Light) or Linear-18 (Standard, Elite, or Elite i-LBA) High Performance LED lightbar, along with a wiring kit and precision-engineered brackets that fit perfectly within the vehicle’s standard centre grille. For added durability and reinforcement, the kit includes self-tapping (plastic) screws for extra hold.

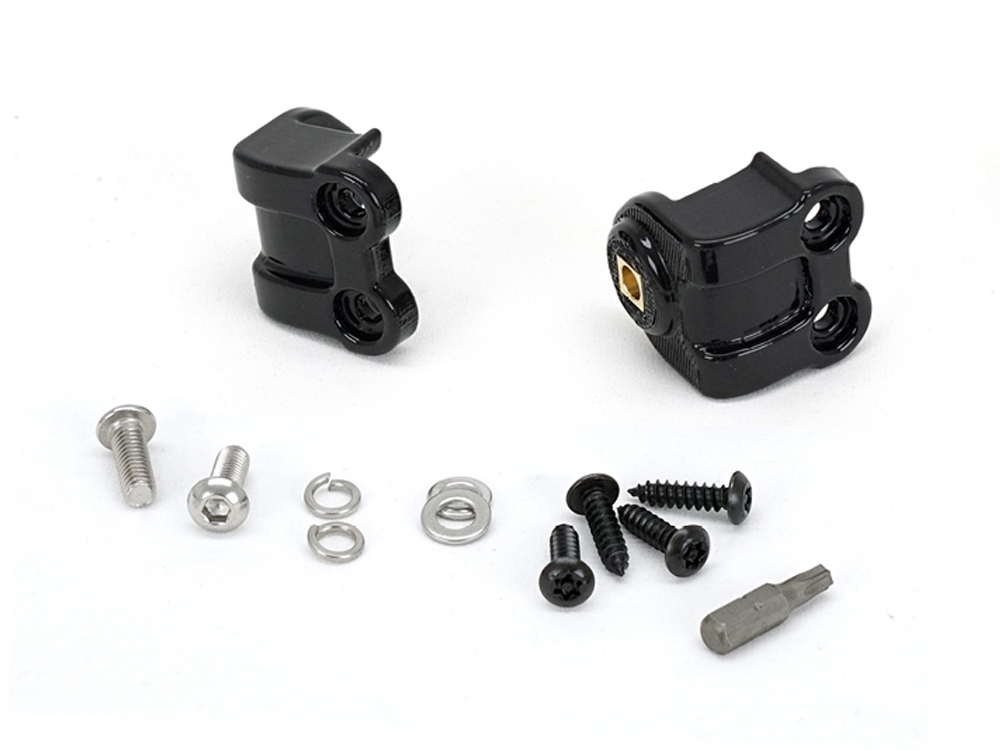

Constructed from a robust composite material renowned for its exceptional strength and UV resistance, the brackets are designed to withstand harsh weather conditions and chemicals, ensuring long-lasting performance. Additionally, the kit comes with precise cutting guides that simplify the installation process, delivering a perfect fit every time—no need to remove grille or bumper components.
The Land Rover Defender (2020+) Grille Integration Kit is carefully tailored and optimised for seamless compatibility with the Glide and Linear-18 LED lightbars. Our warranty does not cover grille mounts which are fitted with non-Lazer Lamps’ branded products.
Where the vehicle has automatic high beam assist, and/or LED Matrix headlight system as standard, it may not be possible to detect a 12V high beam signal. In these instances it will be necessary to complete the electrical installation using a CAN Interface, with our recommended solution being a CANNY Interface. For advice on how to check for a 12V high beam signal, please click here.
† - Driver FOV flux is a measure of effective lumens taking
consideration of the amount of light in a driver's field-of-view,
defined as an area +/- 45° left/right, and +/- 10° up/down.
For more information
click here.
# - All Lazer products are designed to meet the requirements of IP68
testing. Every lamp produced at our UK facility is fully submerged
under water prior to sending out.

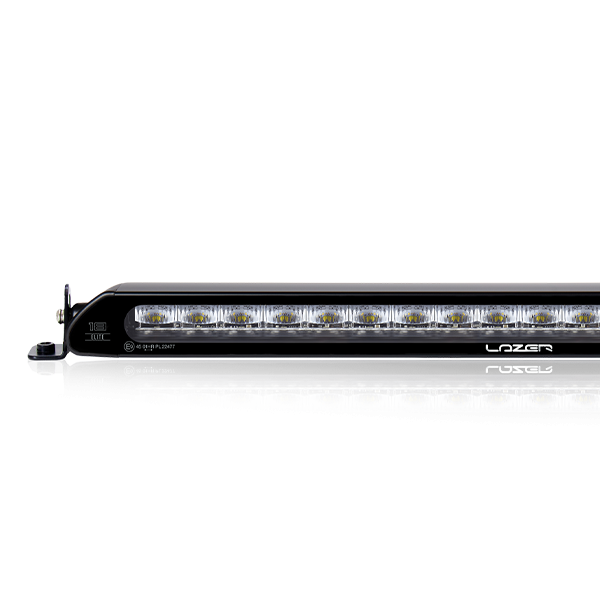

LINEAR-18 ELITE
Voltage Range (DC)
10-32V
LED Life
50,000 hrs
Weight
1.1 kg
HIGH BEAM FUNCTION
Total Luminous Flux
6,750 Lm
Total Driver 'FOV' Flux †
4,806 Lm
Colour Temperature
5000K
Power Consumption
63 Watts
Current Draw (14.4V)
4.4 Amps
CERTIFICATION
IP Rating #
IP68
High Beam (E9 approval)
ECE R112 (Ref: 30)
EMC Certification
ECE R10
Salt Spray Test
ISO 9227
Dump Load Protection
ISO 7637-2

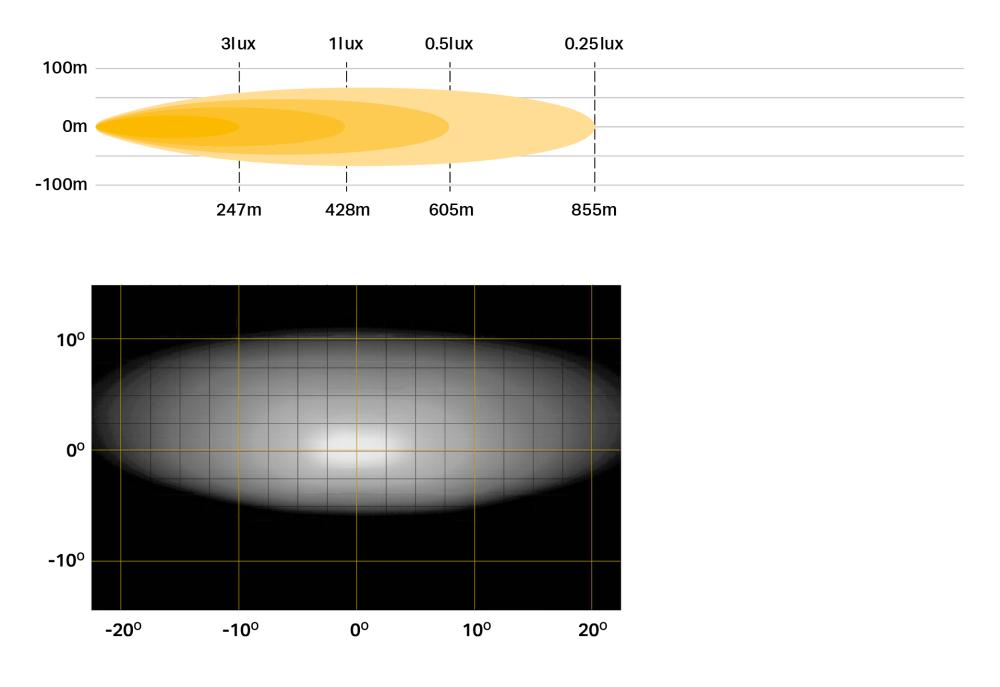

PHOTOMETRIC DATA
Horizontal/Vertical Beam Angle
56° / 13°
0.25 lux
855m
0.5 lux
605m
1 lux
428m
3 lux
247m
† - Driver FOV flux is a measure of effective lumens taking
consideration of the amount of light in a driver's field-of-view,
defined as an area +/- 45° left/right, and +/- 10° up/down.
For more information
click here.
# - All Lazer products are designed to meet the requirements of IP68
testing. Every lamp produced at our UK facility is fully submerged
under water prior to sending out.
LINEAR-18 ELITE I-LBA
Voltage Range (DC)
10-32V
LED Life
50,000 hrs
Weight
1.1 kg
HIGH BEAM FUNCTION
Total Luminous Flux
6,750 Lm
Total Driver 'FOV' Flux †
4,806 Lm
Colour Temperature
5000K
Power Consumption
63 Watts
Current Draw (14.4V)
4.4 Amps
CERTIFICATION
IP Rating #
IP68
High Beam (E9 approval)
ECE R112 (Ref: 30)
EMC Certification
ECE R10
Salt Spray Test
ISO 9227
Dump Load Protection
ISO 7637-2
PHOTOMETRIC DATA
Horizontal/Vertical Beam Angle
56° / 13°
0.25 lux
855m
0.5 lux
605m
1 lux
428m
3 lux
247m
† - Driver FOV flux is a measure of effective lumens taking
consideration of the amount of light in a driver's field-of-view,
defined as an area +/- 45° left/right, and +/- 10° up/down.
For more information
click here.
# - All Lazer products are designed to meet the requirements of IP68
testing. Every lamp produced at our UK facility is fully submerged
under water prior to sending out.

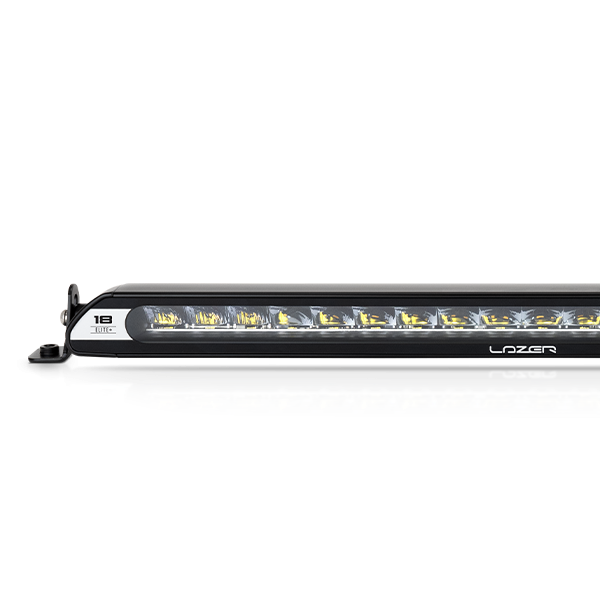

LINEAR-18 ELITE+
Voltage Range (DC)
10-32V
LED Life
50,000 hrs
Weight
1.1 kg
HIGH BEAM FUNCTION
Total Luminous Flux
6,750 Lm
Total Driver 'FOV' Flux †
4,806 Lm
Colour Temperature
5000K
Power Consumption
63 Watts
Current Draw (14.4V)
4.4 Amps
CERTIFICATION
IP Rating #
IP68
High Beam (E9 approval)
ECE R112 (Ref: 30)
EMC Certification
ECE R10
Salt Spray Test
ISO 9227
Dump Load Protection
ISO 7637-2
PHOTOMETRIC DATA
Horizontal/Vertical Beam Angle
56° / 13°
0.25 lux
855m
0.5 lux
605m
1 lux
428m
3 lux
247m
† - Driver FOV flux is a measure of effective lumens taking
consideration of the amount of light in a driver's field-of-view,
defined as an area +/- 45° left/right, and +/- 10° up/down.
For more information
click here.
# - All Lazer products are designed to meet the requirements of IP68
testing. Every lamp produced at our UK facility is fully submerged
under water prior to sending out.

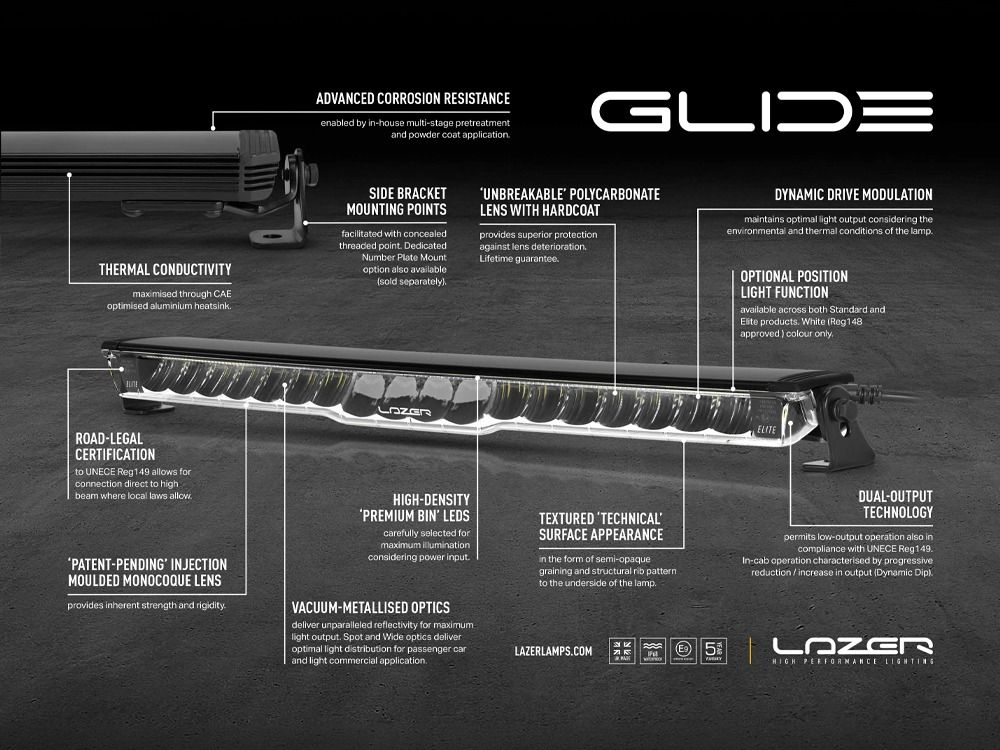

GLIDE
Voltage Range (DC)
10-32V
LED Life
50,000 hrs
Weight
1.1 kg
HIGH BEAM FUNCTION
Total Luminous Flux
6,750 Lm
Total Driver 'FOV' Flux †
4,806 Lm
Colour Temperature
5000K
Power Consumption
63 Watts
Current Draw (14.4V)
4.4 Amps
CERTIFICATION
IP Rating #
IP68
High Beam (E9 approval)
ECE R112 (Ref: 30)
EMC Certification
ECE R10
Salt Spray Test
ISO 9227
Dump Load Protection
ISO 7637-2
PHOTOMETRIC DATA
Horizontal/Vertical Beam Angle
56° / 13°
0.25 lux
855m
0.5 lux
605m
1 lux
428m
3 lux
247m
† - Driver FOV flux is a measure of effective lumens taking
consideration of the amount of light in a driver's field-of-view,
defined as an area +/- 45° left/right, and +/- 10° up/down.
For more information
click here.
# - All Lazer products are designed to meet the requirements of IP68
testing. Every lamp produced at our UK facility is fully submerged
under water prior to sending out.

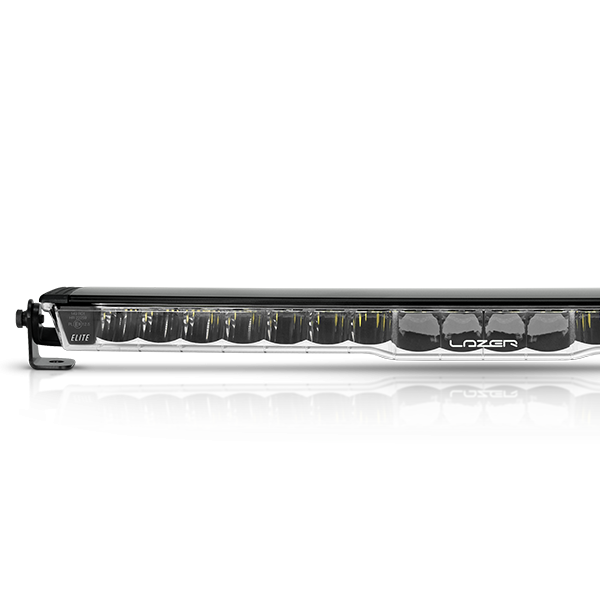

GLIDE ELITE
Voltage Range (DC)
10-32V
LED Life
50,000 hrs
Weight
1.1 kg
HIGH BEAM FUNCTION
Total Luminous Flux
6,750 Lm
Total Driver 'FOV' Flux †
4,806 Lm
Colour Temperature
5000K
Power Consumption
63 Watts
Current Draw (14.4V)
4.4 Amps
CERTIFICATION
IP Rating #
IP68
High Beam (E9 approval)
ECE R112 (Ref: 30)
EMC Certification
ECE R10
Salt Spray Test
ISO 9227
Dump Load Protection
ISO 7637-2
PHOTOMETRIC DATA
Horizontal/Vertical Beam Angle
56° / 13°
0.25 lux
855m
0.5 lux
605m
1 lux
428m
3 lux
247m
† - Driver FOV flux is a measure of effective lumens taking
consideration of the amount of light in a driver's field-of-view,
defined as an area +/- 45° left/right, and +/- 10° up/down.
For more information
click here.
# - All Lazer products are designed to meet the requirements of IP68
testing. Every lamp produced at our UK facility is fully submerged
under water prior to sending out.
Made in the UK
