Introducing Glide, the world’s first ‘formed’ LED light bar. Featuring a monocoque lens construction for highly weight-efficient inherent strength and robustness, Glide is a range of 20” curved light bars that deliver so much especially when considering their ultra low-profile design. The enviable balance of exceptional lighting performance and OE quality aesthetics, sympathetic to the front contours of a diverse number of vehicle types, makes, and models, make Glide an exceptional choice particularly within the passenger car and light commercial sectors.

Befitting any Lazer product with the ‘Elite’ tag, considering the lamp’s size the Glide Elite delivers the very highest levels of consistent light output in a carefully engineered beam distribution derived from a combination of Spot and Wide optics and LED arrangement. Those optics, vacuum-metallised in-house by Lazer to maximise reflectivity, harness the 12,800 raw lumens to deliver 1 lux to 624m while still maintaining a 66 degree horizontal spread of light. The ‘premium bin’ LEDs utilised within the Glide Elite lamps are carefully selected for their 80CRI, with this high colour rendering index providing more definition of colours and shapes for a clearer, safer night-driving experience.

In-built within each Glide lamp is a Dynamic Dip mode which provides a smooth transition between high and low output modes. The low output mode permits driving in compliance with UNECE Regulation 149 (Double E-Mark) where local laws require, and/or a reduced output which for example reduces glare from highly reflective surfaces such as large road signs. The Dynamic Dip function is activated after the light has been on for >2seconds by simply and quickly flashing the light off and on again.

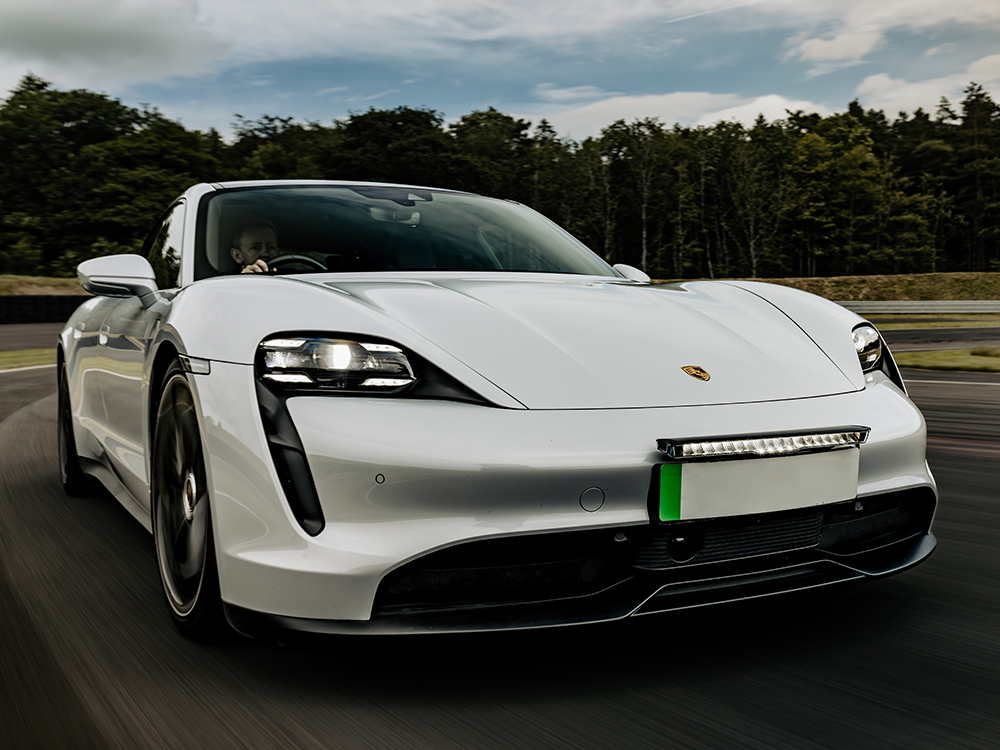

Each lamp comes equipped with a side mounting kit, while additional mounting options are available to customize your setup—choose from a number plate mount or for added peace of mind, an anti-theft side mounting kit. For underside number plate installations, the side mounting kit should be used in conjunction with our universal number plate mount kit (sold separately).

The Glide range of low-profile formed light bars, like all Lazer LED lighting solutions, are designed and manufactured against unparalleled standards and packed full of advanced and innovative features to maximise performance and longevity. With Glide you can be fully assured of exceptional high-end product design, coupled with superior levels of illumination, all backed by our comprehensive 5-year warranty.

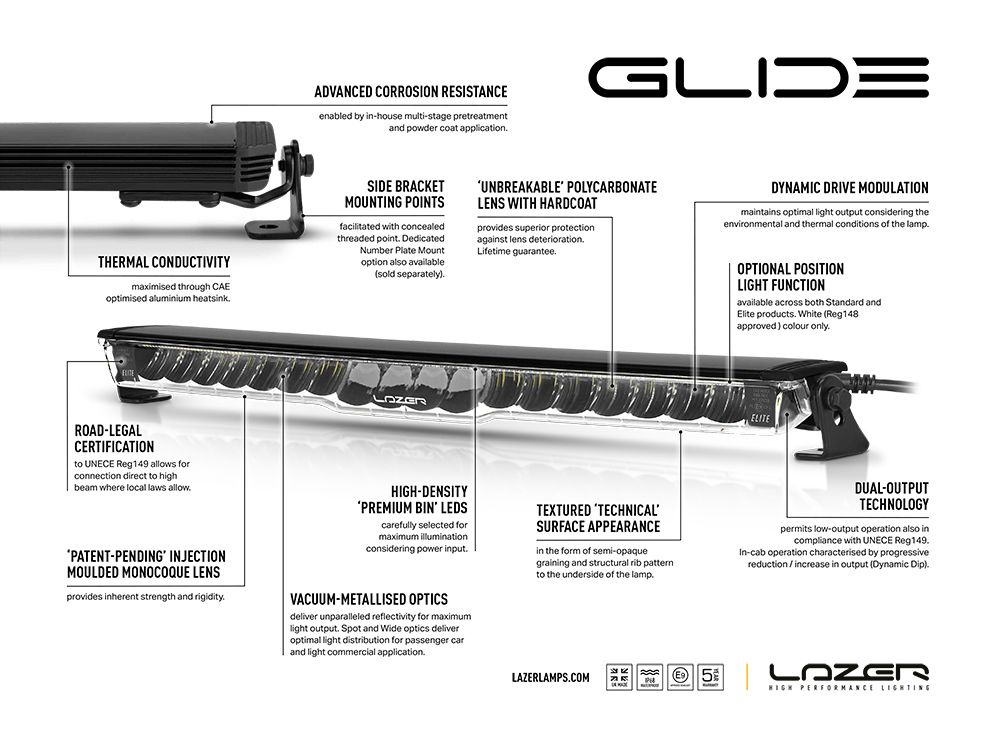

‘Formed’ light bar featuring injection-moulded monocoque lens construction

Curved and ultra low-profile lamp design facilitates OE quality vehicle installation

Patent-pending lamp design

Incorporation of the latest high-intensity ‘premium bin’ LEDs

Combined vacuum-metallised spot and wide optic systems deliver optimal light distribution

Dynamic Dip function for transitioning between high and low output modes

UNECE approved Reg 149 (Class B Driving Light) for on-road high beam function – Low Output / E-Mark mode only

Adoption of black PCB’s for a contemporary and stealth appearance

‘Unbreakable’ polycarbonate lens with hardcoat (with lifetime guarantee*)

Textured effect to the underside of the polycarbonate lens for a unique aesthetic appearance

5000K LED colour temperature and high 80CRI maximises sharpness and definition

Supplied with side mounting kit – Anti-theft side mounting kit / Number plate mount also available (sold separately)

Electronic thermal management system optimises light output to preserve longevity of the LEDs

In-house pre-treatment and automotive grade powder top-coat for ultimate corrosion and chemical protection

Over voltage protected

Reverse polarity protected

UNECE approved Reg 10

IP68 watertight – 1.5m submersion (30mins)

5-year warranty

25cm lamp cable with supplied male/female 2-pin Superseal connectors

Designed and manufactured in UK

1x SENTINEL 9" ELITE BOOST MODE LOW OUTPUT / E-MARK MODE
Voltage Range (DC)10-32V10-32V
LED Life50,000 hours50,000 hours
Weight2.5 kg2.5 kg
High Beam Function
Total Luminous Flux15,232 Lm3,046 Lm
Total Driver FOV Flux †9,048 Lm1,809 Lm
Colour Temperature5000K5000K
Power Consumption145 Watts29 Watts
Peak Current Draw15.1 Amps3 Amps
Current Draw (14.4V)10.1 Amps2 Amps
Connector3-Pin Superseal (+25cm Cable)3-Pin Superseal (+25cm Cable)
Certification
IP Rating #IP68IP68
High Beam (E9 approval)ECE R112 - Ref: 20ECE R112 - Ref: 20
Position Light (white only)ECE R148ECE R148
EMC CertificationECE R10ECE R10
Salt Spray TestISO 9227ISO 9227
Dump Load ProtectionISO 7637-2ISO 7637-2

† - Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver's field-of-view, defined as an area +/- 45° left/right, and +/- 10° up/down. For more information click here.

# - All Lazer products are designed to meet the requirements of IP68 testing. Every lamp produced at our UK facility is fully submerged under water prior to sending out.

PHOTOMETRIC DATA BOOST MODE LOW OUTPUT / E-MARK MODE
0.25 lx Line1483m663m
0.5 lx Line1049m469m
1 lx Line742m332m
3 lx Line428m191m
Sentinel 9 Elite photometric diagram

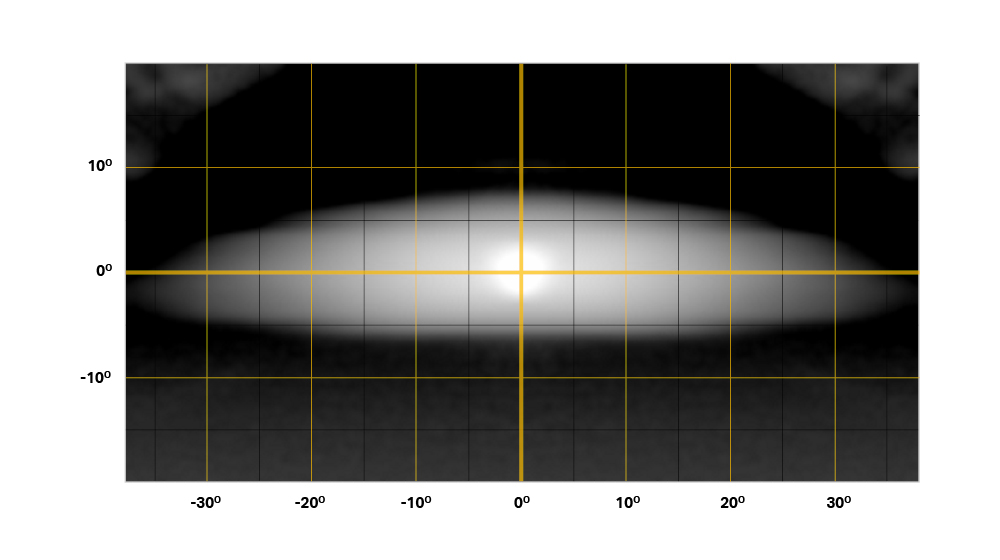

BEAM DISTRIBUTION
Horizontal52 degrees
Vertical14 degrees
Highline beam distribution
DIMENSIONS
Width225mm
Depth90mm
Height230mm
Sentinel dimensions diagram
  • Glide Elite LED Lightbar
  • Side Mounting Kit (1131K)
  • Installation Instructions
