Toyota Land Cruiser 70 Series (2007-2023) Grille Kit

Toyota Land Cruiser 70 Series (2007-2023) Grille Kit

Product Code
GK-LC70-01K
£546.00
Find a Stockist

PAYMENT & DELIVERY

Prices in GBP. UK orders ship within 1 working day (stock permitting); international orders within 2 working days. International shipments are supplied DAP and may be subject to local taxes and duties. More Information.

For an OE quality, auxiliary light installation, the Lazer Grille Integration Kits are custom-fit mounting brackets which allow for quick and easy fitting of Lazer High Performance LED lights within the front grille of the most popular road cars, pick-up trucks, and light commercial vehicles. Designed to blend seamlessly within the original styling of each vehicle, the resulting lighting setup remains fully robust and secure.

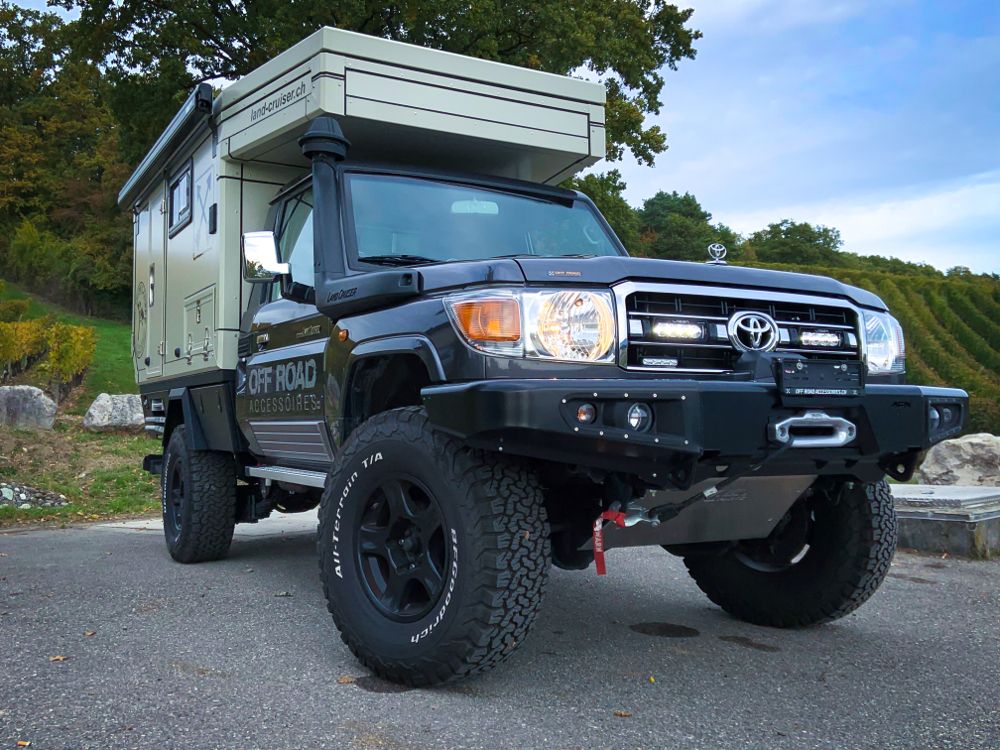

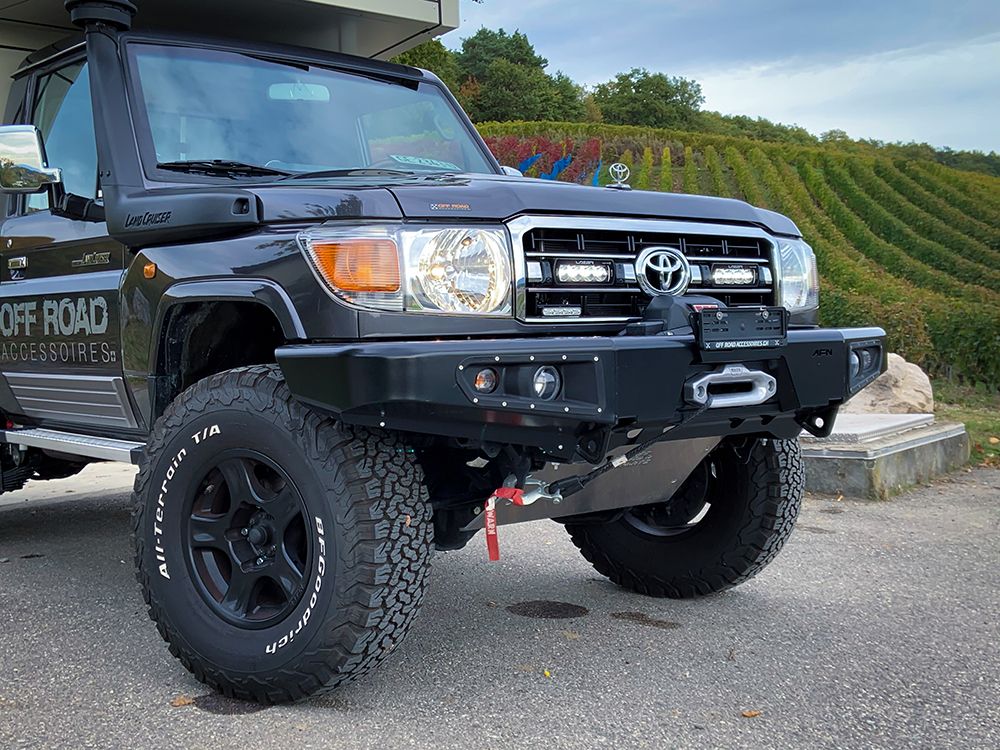

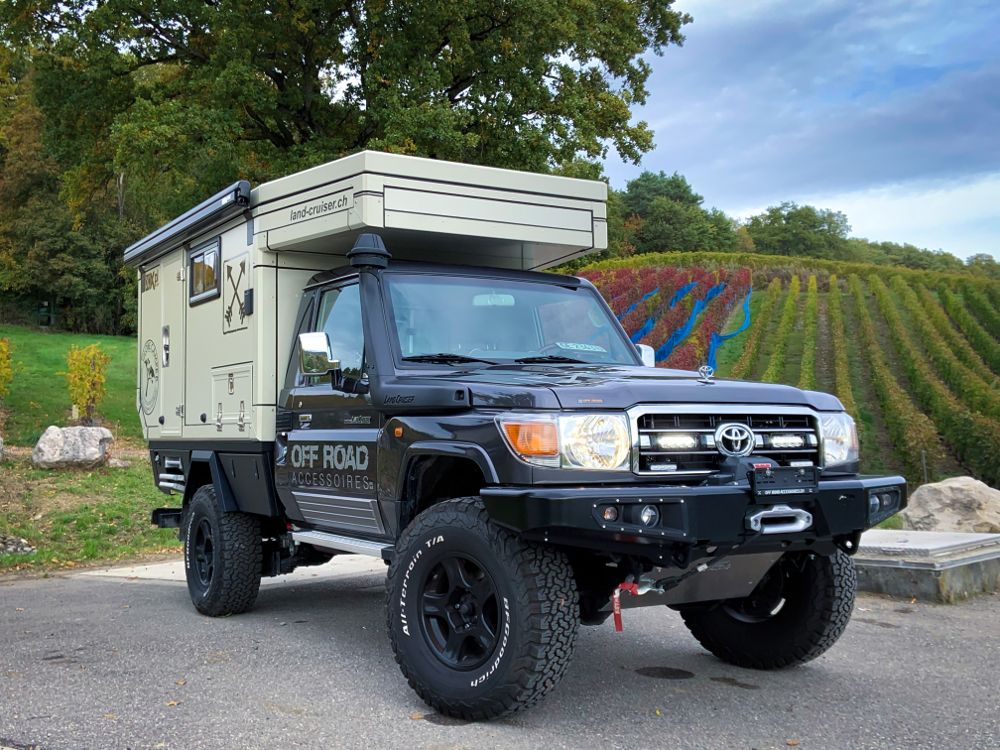

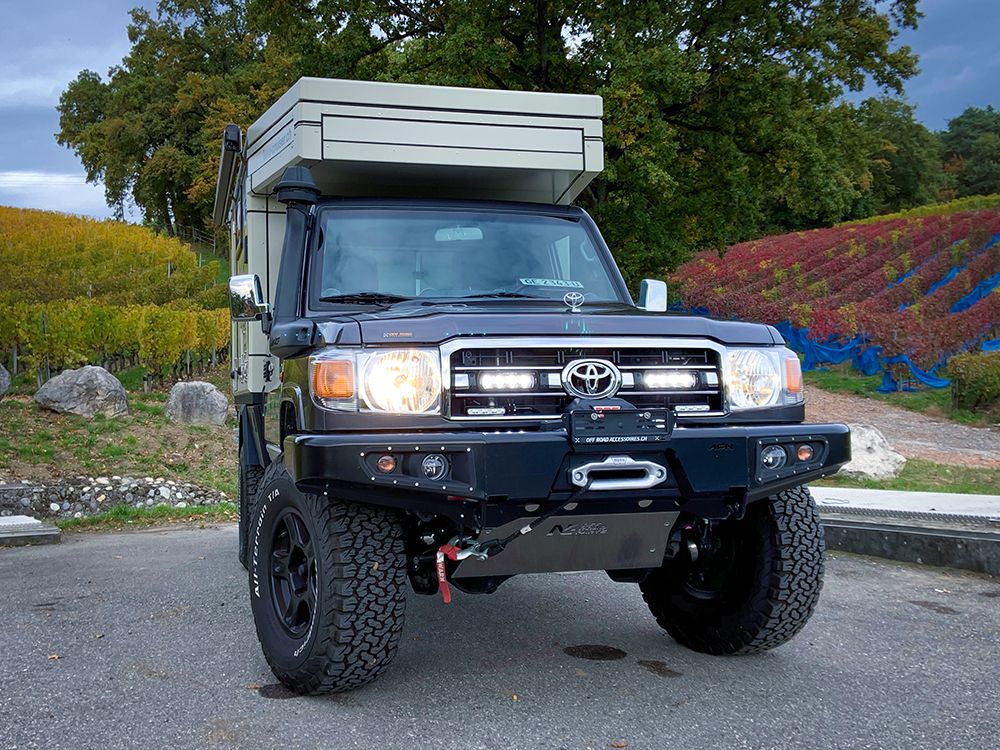

The Toyota Land Cruiser 70 Series (2007-2023) integration kit includes a pair of ST4 Evolution High Performance LED driving lights, perfectly suited for all types of on and off-road driving. The kit includes wiring kit, alongside 4x brackets precision-engineered to engage perfectly with the standard centre grille on the vehicle, with added strength and security provided by supplied anti-theft self-tapping screws. Made from composite material, known for its excellent strength and UV stability, the brackets are fully weather and chemical resistant to ensure your installation remains in great condition year after year.

The Toyota Land Cruiser 70 Series (2007-2023) Grille Integration Kit is optimised for use with ST4 Evolution High Performance LED lights. Our warranty does not cover grille mounts which are fitted with non-Lazer Lamps’ branded products.

Bespoke vehicle integration kit for Lazer LED light installation

Custom fit for Toyota Land Cruiser 70 Series (2007-2023)

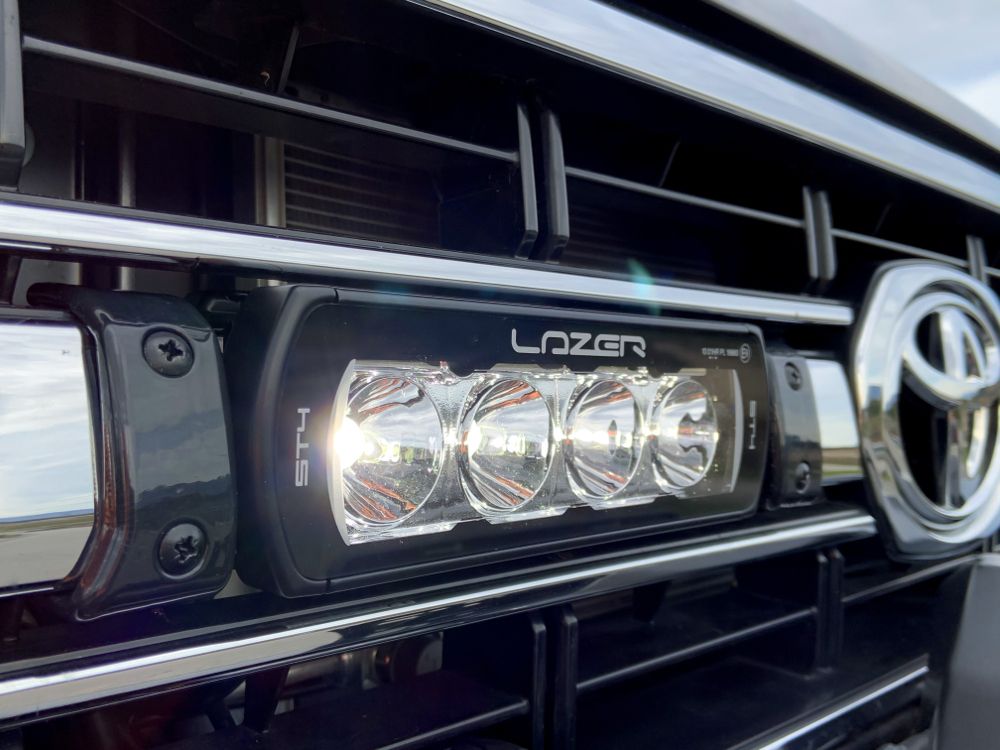

Designed for use with ST4 Evolution High Performance LED lights

Kit includes bespoke mounting brackets and two-lamp wiring kit

Brackets made from high strength, UV -stable, composite material

Fully road-legal

5-year warranty

Made in Britain

Technical Specifications

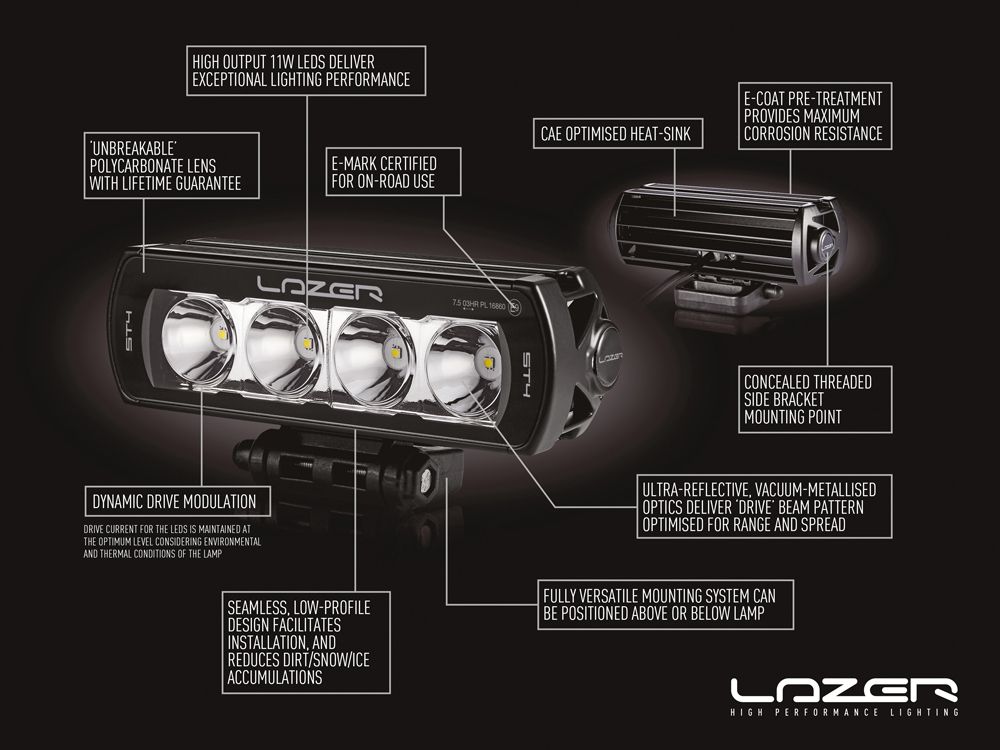

  2x ST4 EVOLUTION

Voltage Range (DC) 10-32V
LED Life 50,000 hours
Weight 1.34 kg

HIGH BEAM FUNCTION
Total Luminous Flux 8,272 Lm
Total Driver 'FOV' Flux † 4,980 Lm
Colour Temperature 5000K
Power Consumption 94 Watts
Peak Current Draw 11 Amps
Current Draw (14.4V) 6.6 Amps
Connector 2-Pin Superseal (+25cm Cable)

CERTIFICATION
IP Rating # IP68
High Beam (E9 approval) ECE R149 - Ref: 2x 10
EMC Certification ECE R10
Salt Spray Test ISO 9227
Dump Load Protection ISO 7637-2

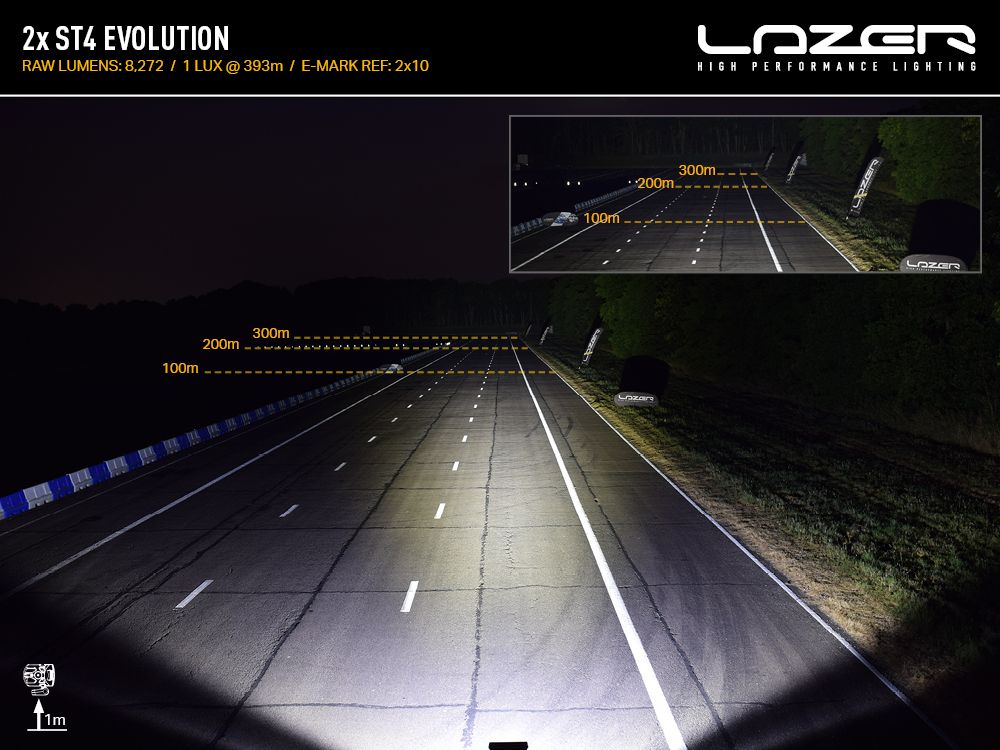

PHOTOMETRIC DATA
Horizontal / Vertical Beam Angle 40° / 25°
0.25 lx Line 786m
0.5 lx Line 555m
1 lx Line 393m
3 lx Line 227m




† - Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver's 'field-of-view' defined as an area +/- 45° left/right, and +/- 10° up/down. For more information – click here.

# - All Lazer products are designed to meet the requirements of IP68 testing. Every lamp produced at our UK facility is fully submerged under water prior to sending out.

What's Included

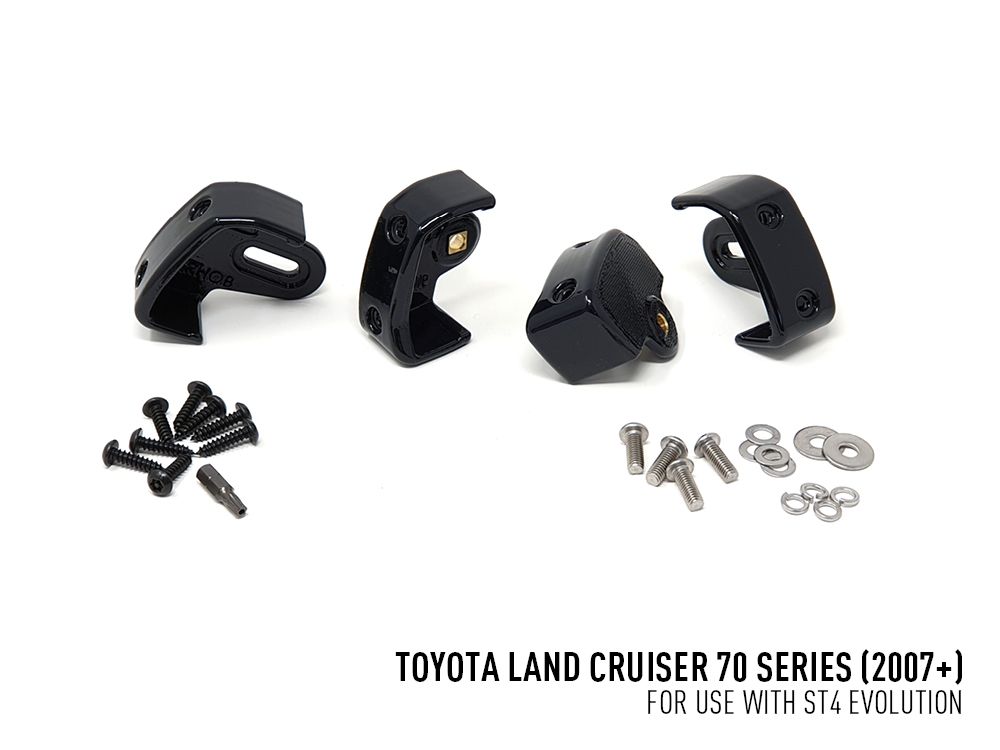

  • 1x Grille Mounting Kit (Includes cutting guides)
  • 2x ST4 Evolution LED Lamps
  • 1x Two-Lamp Wiring Kit
  • Installation Instructions
Downloads

CLICK BELOW TO DOWNLOAD (OPENS PDF IN NEW WINDOW)

Videos

Discover more lighting POV footage, step-by-step installations, and other helpful tips on our YouTube channel — click here to explore!
