Segway Villain (2022+) - Shock Tower Light Bar Mount

Segway Villain (2022+) - Shock Tower Light Bar Mount

Product Code
#VIFK-SGWY-01K

From £50.40

To £402.00

1. Shock Tower Light Bar Mount *
Segway Villain (2022+) - Shock Tower Light Bar Mount

In stock

Find a Stockist

£50.40

PAYMENT & DELIVERY

Prices in GBP. UK orders ship within 1 working day (stock permitting); international orders within 2 working days. International shipments are supplied DAP and may be subject to local taxes and duties. More Information.

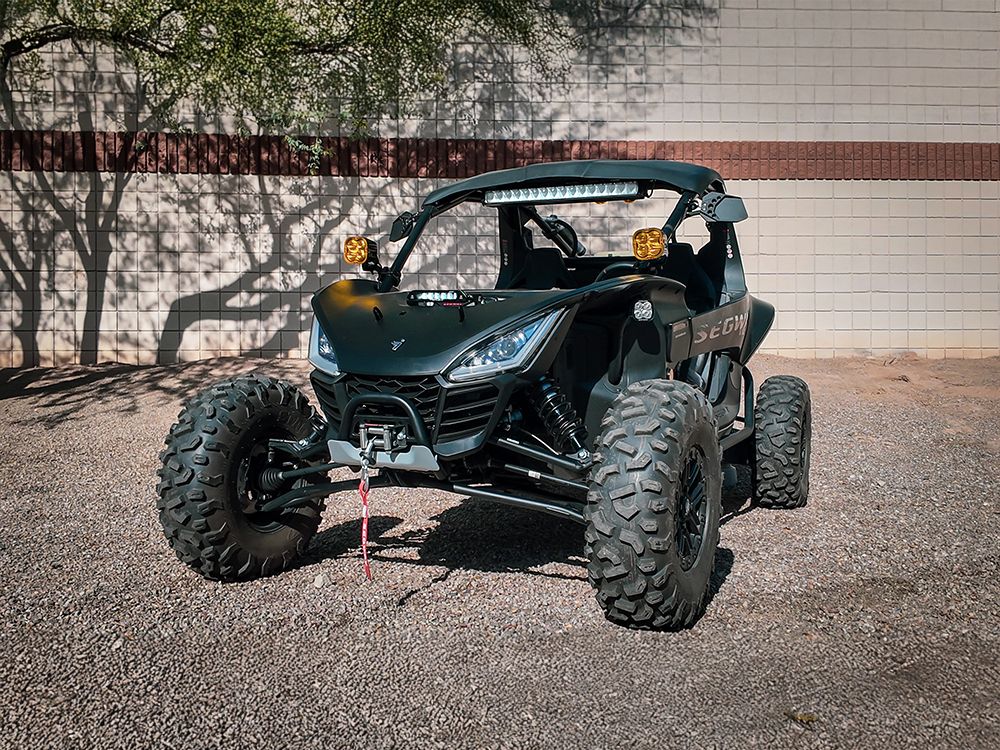

Elevate your Segway Villain (2022+) driving experience with our dedicated shock tower light bar mounting kit designed and engineered for the Linear-6 range of LED light bars. The mount bolts directly to the factory shock tower for an easy and robust install, even at high speeds.

The Linear-6 is available in Standard, Elite, or Elite+ grade which boasts white and yellow LEDs to be used independently or in combination – perfect when navigating harsh and rapidly changing off-road conditions. Offering everything from a more cost-effective solution, to the very best in lighting performance considering the diminutive proportions of the Linear-6, and the flexibility and functionality of the Elite+, there’s a solution for all Segway owners wanting to continue the fun late into the night!

Produced from 3mm stainless steel with satin black powder coat finish

Supplied with anti-theft lamp mount fasteners

Locates in original shock tower fixtures on the Segway Villain (2022+)

Designed for Linear-6 high performance LED lights

Designed & manufactured in the UK

Technical Specifications


LINEAR-6

LINEAR-6
ELITE

LINEAR-6
ELITE+
(LOW OUTPUT / BOOST)


Voltage Range (DC) 10-32V 10-32V 10-32V
LED Life 50,000 hrs 50,000 hrs 50,000 hrs
Weight 495 gr 495 gr 495 gr

HIGH BEAM FUNCTION
Total Luminous Flux 2250 Lm 4050 Lm 5100 / 2500 Lm
Total Driver 'FOV' Flux † 1602 Lm 2884 Lm 3645 / 1822 Lm
Colour Temperature 5000K 5000K 5000K
Power Consumption 21 Watts 42 Watts 48 W / 24 W
Current Draw (14.4V) 1.5 Amps 2.9 Amps 3.6 A / 1.8 A

CERTIFICATION
IP Rating # IP68 IP68 IP68
High Beam (E9 approval) ECE R112 - Ref: 12.5 ECE R112 - Ref: 17.5 ECE R149 - Ref 12.5 (Low Output Mode only)
EMC Certification ECE R10 ECE R10 ECE R10
Salt Spray Test ISO 9227 ISO 9227 ISO 9227
Dump Load Protection ISO 7637-2 ISO 7637-2 ISO 7637-2

PHOTOMETRIC DATA
Horizontal / Vertical Beam Angle 56° / 13° 64° / 15° 84° / 18°
0.25 lx Line 494 m 563 m 600m / 424m
0.5 lx Line 349 m 398 m 424m /300m
1 lx Line 247 m 282 m 300m / 212m
3 lx Line 143 m 163 m 173m / 122m




† - Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver's 'field-of-view' defined as an area +/- 45° left/right, and +/- 10° up/down. For more information – click here.

# - All Lazer products are designed to meet the requirements of IP68 testing. Every lamp produced at our UK facility is fully submerged under water prior to sending out.

What's Included
  • x1 Shock Tower Mount (for Linear-6)
  • Anti-Theft Fastener Set
Downloads

CLICK BELOW TO DOWNLOAD (OPENS PDF IN NEW WINDOW)
