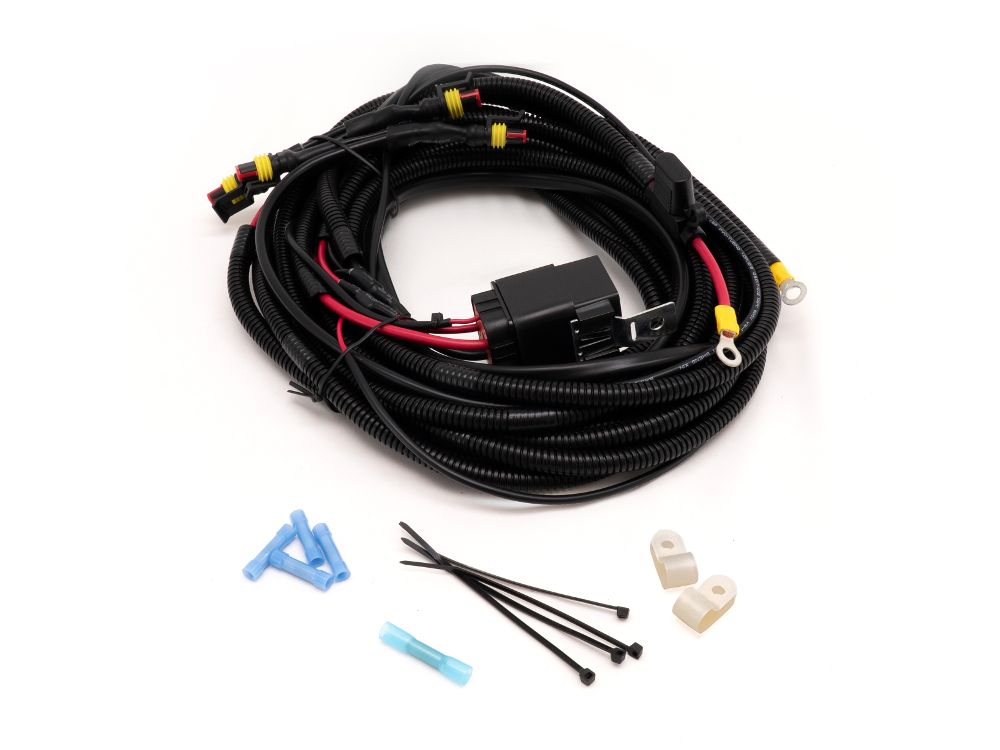

Four-Lamp Wiring Kit with Splice (2-Pin, Superseal, 12V)
PAYMENT & DELIVERY
Orders will be shipped within 1 working day (stock permitting). UK customers will be given the option for Standard or Express delivery service. International orders will dispatch via Express Courier Service, on a DAP (Delivered At Place) basis, meaning you will be liable for country specific VAT and import duties. More Information.

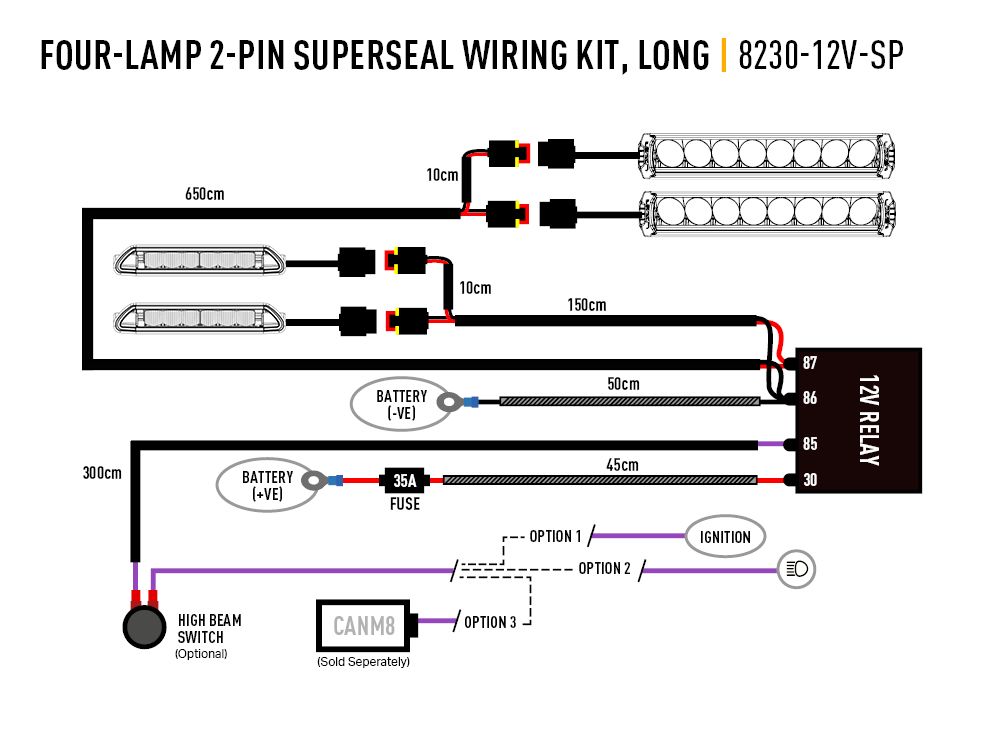

The ideal solution for wiring four Lazer high performance LED lights, most commonly on pick-up trucks where the requirement is for 2x lights at the front of the vehicle, and 2x lights on the roof/sports bar. Only suitable where lights without additional position light function are being used. The setup is quick, easy, and reliable with 2-pin superseal connection and no configuration procedures. The kit features a 12V relay, 35A fuse, a battery terminal at one end, and 1.5m and 6.5m of flex on the lamp cables, and allows for the operation of Lazer products in parallel with the standard high beam driving lights on your vehicle.
All Lazer lamps are sold with a pre-wired female connector attached to the male connector of the lamp harness, to facilitate wiring in to your vehicle system.
Compatible with:
- ST Evolution (All Products)
- Triple-R 750 Elite
- Triple-R 850 Elite
- Triple-R 1000 Elite
- Linear-6 (Std / Elite)
- Linear-12 (Std / Elite)
- Linear-18 (Std)
Only suitable for two Triple-R 1000 (or ST8 / Linear-12 Elite) and two Triple-R 750 (or ST4 / Linear-6 Elite). Not suitable for Triple-R 1250 / Linear-18 Elite
Four-Lamp Wiring Kit for Lazer driving lights (2-Pin, Superseal connections)
1.5m / 6.5m cable lengths
Includes 12V relay and 35 amp fuse
Relay holder approved to IP53 when mounted in a vertical (upright) orientation
2-pin Superseal connections
Allows for operation of lights in parallel with standard high beam lights
Conduit cable sections for added protection within engine bay
