Ford Ranger Raptor (2018-2022) Bumper Beam Mounting Kit

Ford Ranger Raptor (2018-2022) Bumper Beam Mounting Kit

Be the first to review this product

Product Code

#VIFK-RAPTOR-01K

From £630.00

To £942.00

1. Bracket Options *

Qty

2. Lighting Options *

Qty

3. Wiring Kit

Ford Ranger Raptor (2018-2022) Bumper Beam Mounting Kit

In stock

Qty

Find a Stockist

£630.00

PAYMENT & DELIVERY
Orders will be shipped within 1 working day (stock permitting). UK customers will be given the option for Standard or Express delivery service. International orders will dispatch via Express Courier Service, on a DAP (Delivered At Place) basis, meaning you will be liable for country specific VAT and import duties. More Information.

Product description

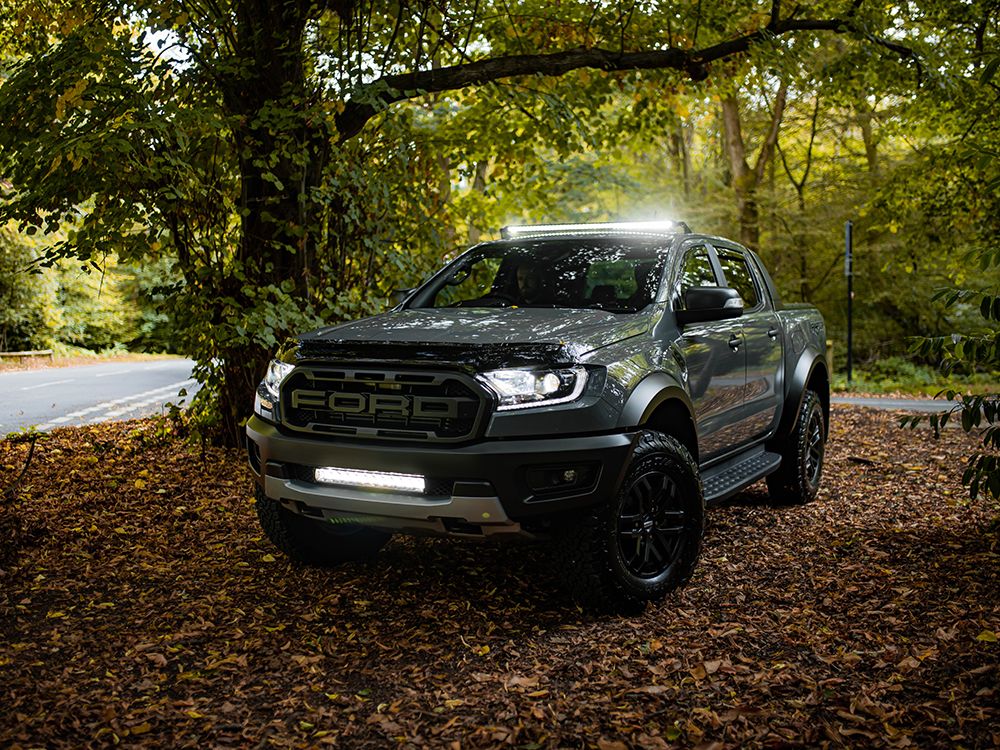

For an OE quality, robust and entirely secure auxiliary spotlight installation, the Bumper Beam Mounting Kit for the Ford Ranger Raptor (2018+) is specially designed and engineered to fit seamlessly within the lower grille, secured to the bumper beam of the vehicle, ensuring the installation is completely secure, with extra protection against theft.

Compatible with either our most advanced LED high performance light, the Triple-R 1250 Elite+, Triple-R 1250 with i-LBA or our Triple-R 1250 Standard, which has been newly upgraded to the latest LED technology, now with integrated with amber or white position light function for added styling to ensure your vehicle shines day and night!

The mounting brackets are made from 3mm mild steel, with e-coat pre-treatment and satin black powder coat to guarantee your installation remains in excellent condition for years to come. The bumper beam mounting kit comes complete with fasteners.

With no compromises in component parts or production techniques, as with all Lazer products, the products are backed up by our comprehensive 5yr warranty.

LIGHTS AND WIRING SOLD SEPARATELY.
(note - One-Lamp Wiring Kit included with lamps: Triple-R 1250 Elite i-LBA, and Triple-R 1250 Elite+)

Product Features

Auxiliary spotlight installation for Ford Ranger Raptor (2018-2022)

Compatible with Triple-R 1250 Standard, Elite+, or Elite with i-LBA

Fully robust and secure, with extra protection against theft

Vehicle wiring kits and CAN bus Interfaces available

Fully road-legal

5-year warranty

Made in Britain

Technical Specifications

	Triple-R 1250	Triple-R 1250 Elite+ (E-Boost / E-Mark)	Triple-R 1250 Elite i-LBA (E-Boost)
Voltage Range	10-32V	10-32V	10-32V
LED Life	50,000 hrs	50,000 hours	50,000 hrs
Weight	2.4 kg	2.4 kg	2.4 kg
HIGH BEAM FUNCTION
Total Luminous Flux	13,860 Lm	12028 / 2045	16136 Lm
Total Driver 'FOV' Flux †	8358 Lm	7464 / 1269	8657 Lm
Colour Temperature	5000K	5000K	5000k
Number of High Output LEDs	12	24	36
Power Consumption	125 Watts	131 W / 19.6 W	151 Watts
Current Draw (at 14.4V)	8.7 Amps	9.1 A / 1.4 A	10.5 Amps
CERTIFICATION
High Beam	ECE R112	ECE R149
E-Mark Ref	20	TBC	N/A (40 - E-Mark Mode)
Position Light (White only)	ECE R7	ECE R148	N/A
PHOTOMETRIC DATA
Horizontal Beam Angle	19^o	54°	56^o
0.25 lx Line	1500m	1470m / 616m	1652m
0.5 lx Line	1061m	1039m / 436m	1168m
1 lx Line	750m	735m / 308m	826m
3 lx Line	433m	424m / 178m	477m

† Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver's 'field-of-view' defined as an area +/- 45o left/right, and +/- 10o up/down. For more information – click here.

Whats included

x2 Bumper Beam Brackets Fixtures Fitting instructions available in the downloads section below.

Downloads

Downloads
CLICK BELOW TO DOWNLOAD (OPENS PDF IN NEW WINDOW) Triple-R 1250 - Product Information Sheet(2.13 MB) Ford Ranger Raptor (2018-2022) Bumper Beam Mounting Kit - Instructions(6.90 MB) Triple-R 1250 Elite+ - Product Information Card(2.59 MB) Triple-R 1250 Smartview - Product Information Sheet(3.37 MB) Triple-R 1250 Elite i-LBA - Product Information Sheet(2.45 MB)
