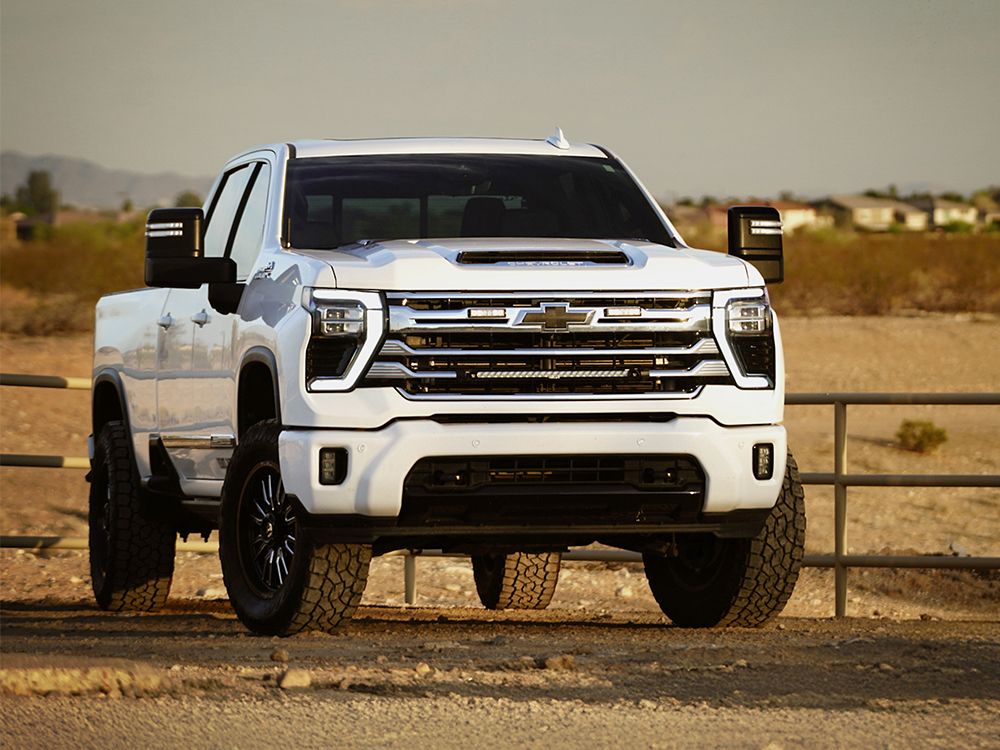

Chevrolet Silverado 2500/3500 High Country (2024+) Grille Kit

Chevrolet Silverado 2500/3500 High Country (2024+) Grille Kit

Product Code
GK-CS2500-ELITE-03K
£744.00
Find a Stockist

PAYMENT & DELIVERY

Prices in GBP. UK orders ship within 1 working day (stock permitting); international orders within 2 working days. International shipments are supplied DAP and may be subject to local taxes and duties. More Information.

For an OE-quality auxiliary lightbar installation, the Lazer Grille Integration Kits include custom-designed mounting brackets that facilitate the quick and seamless fitting of Triple-R Lights’ High Performance LED lightbars into the front grilles of popular road cars, pick-up trucks, and light commercial vehicles. Crafted to complement each vehicle's original styling, the integrated setup is robust, secure, and features added anti-theft protection.

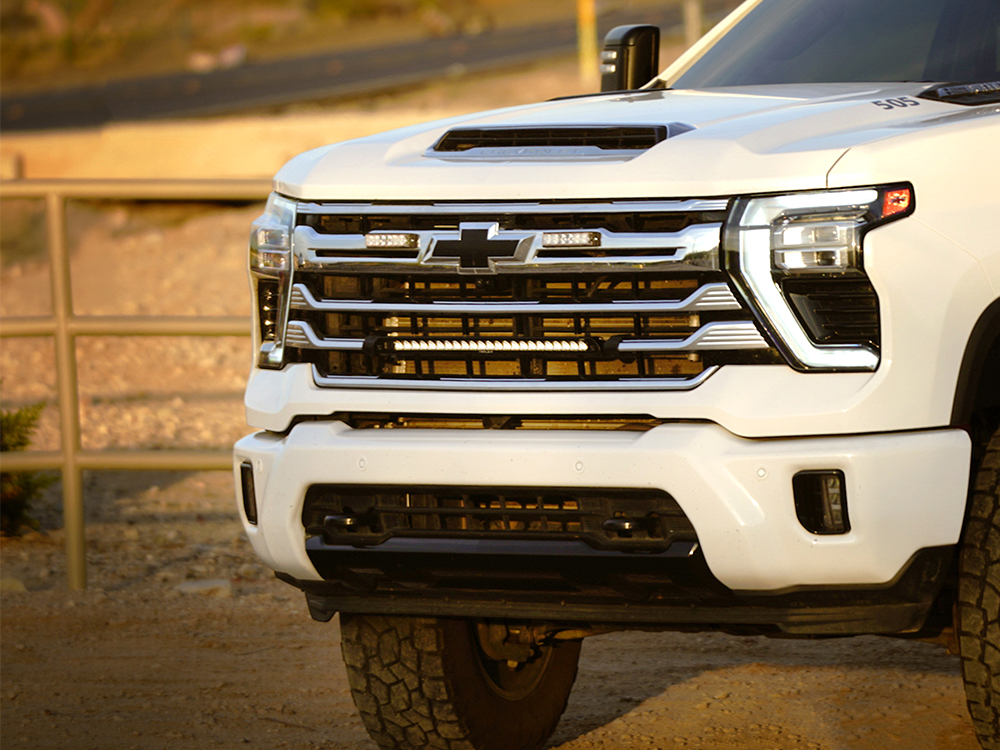

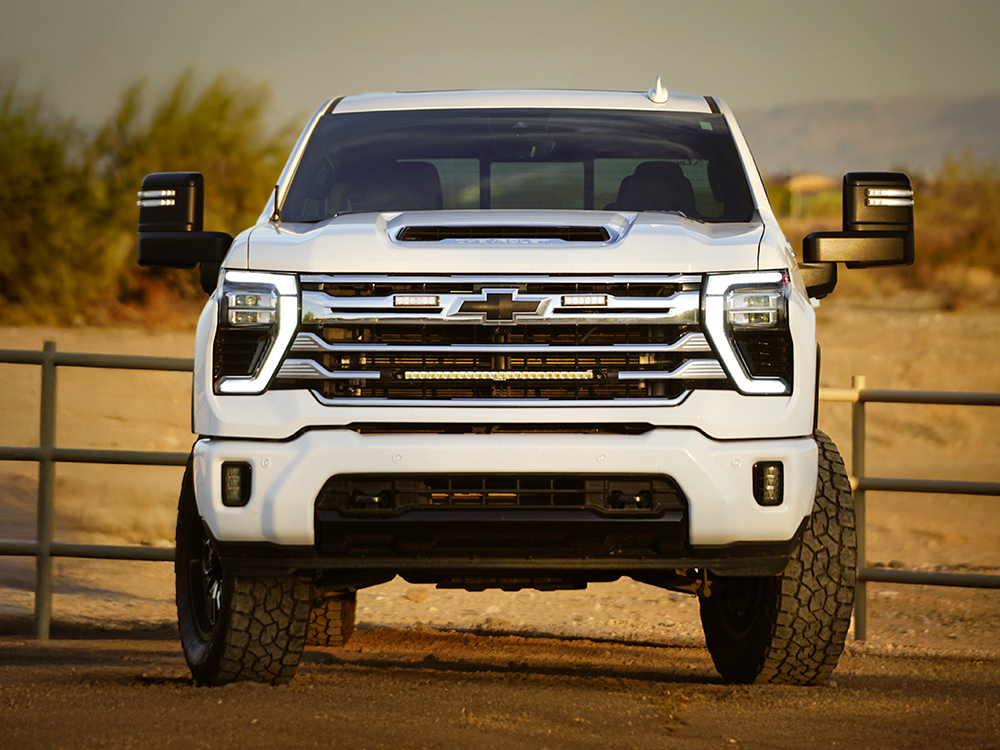

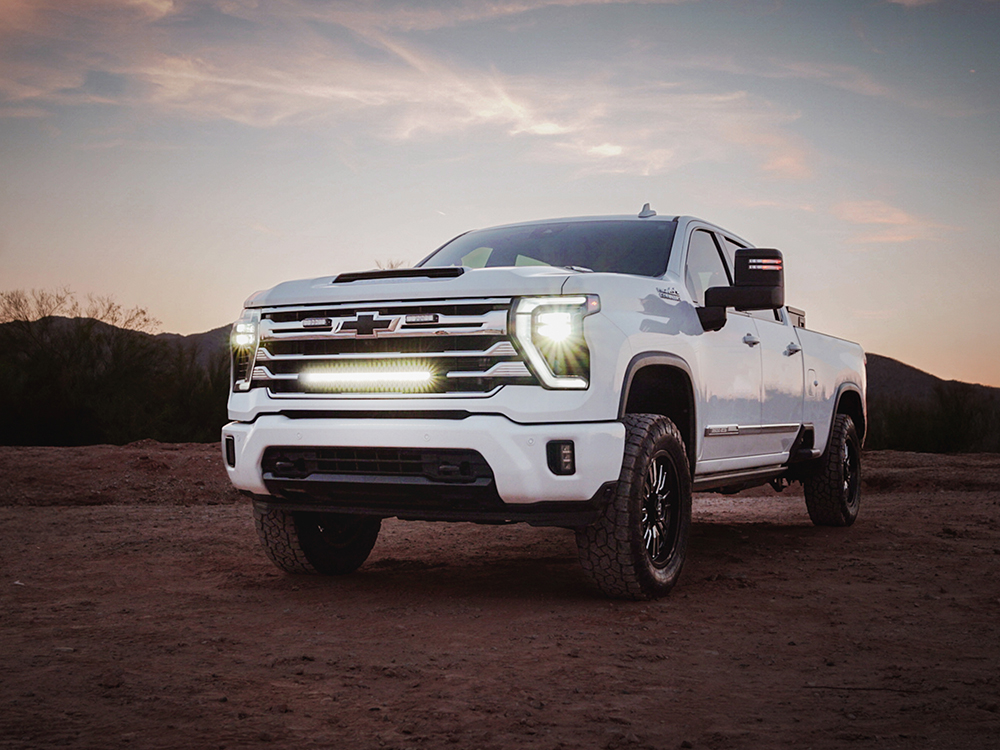

The Chevrolet Silverado 2500/3500 High Country (2024+) Grille Integration Kit features a Linear-24 Elite High Performance LED lightbar, along with a wiring kit and precision-engineered brackets that fit perfectly within the vehicle’s standard centre grille. For added durability and reinforcement, the kit includes self-tapping (plastic) screws for extra hold.

Constructed from a robust composite material renowned for its exceptional strength and UV resistance, the brackets are designed to withstand harsh weather conditions and chemicals, ensuring long-lasting performance. Additionally, the kit comes with precise cutting guides that simplify the installation process, delivering a perfect fit every time—no need to remove grille or bumper components.

The Chevrolet Silverado 2500/3500 High Country (2024+) Grille Integration Kit is carefully tailored and optimised for seamless compatibility with the Linear-24 Elite LED lightbars. Our warranty does not cover grille mounts which are fitted with non-Lazer Lamps’ branded products.

Bespoke vehicle integration kit for Lazer Lamps LED light bar installation

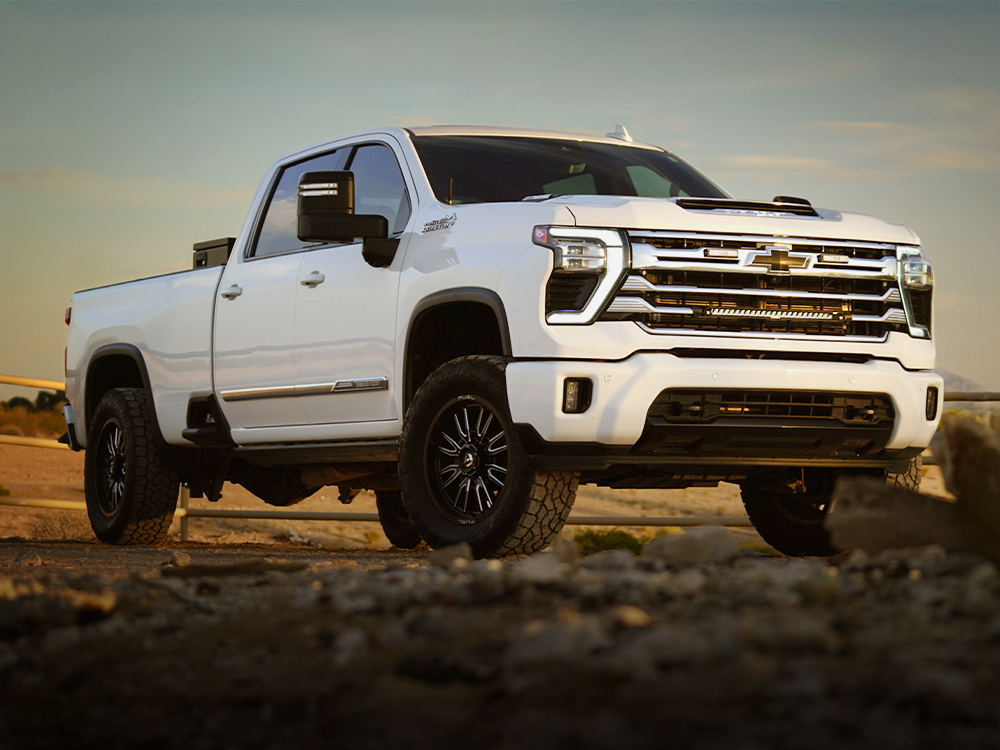

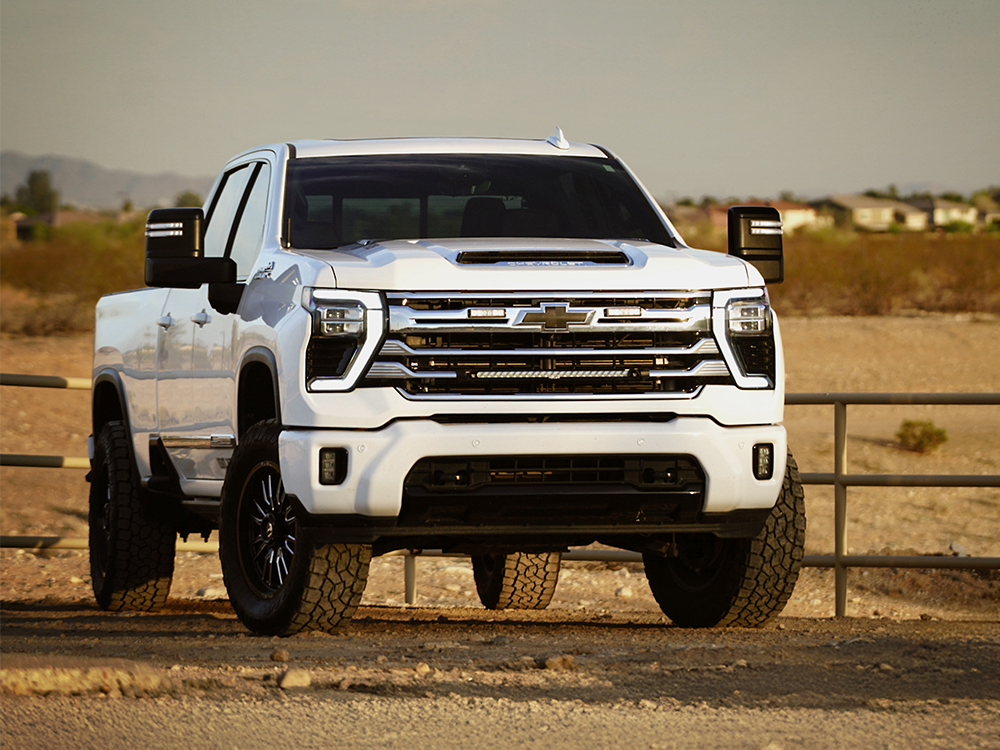

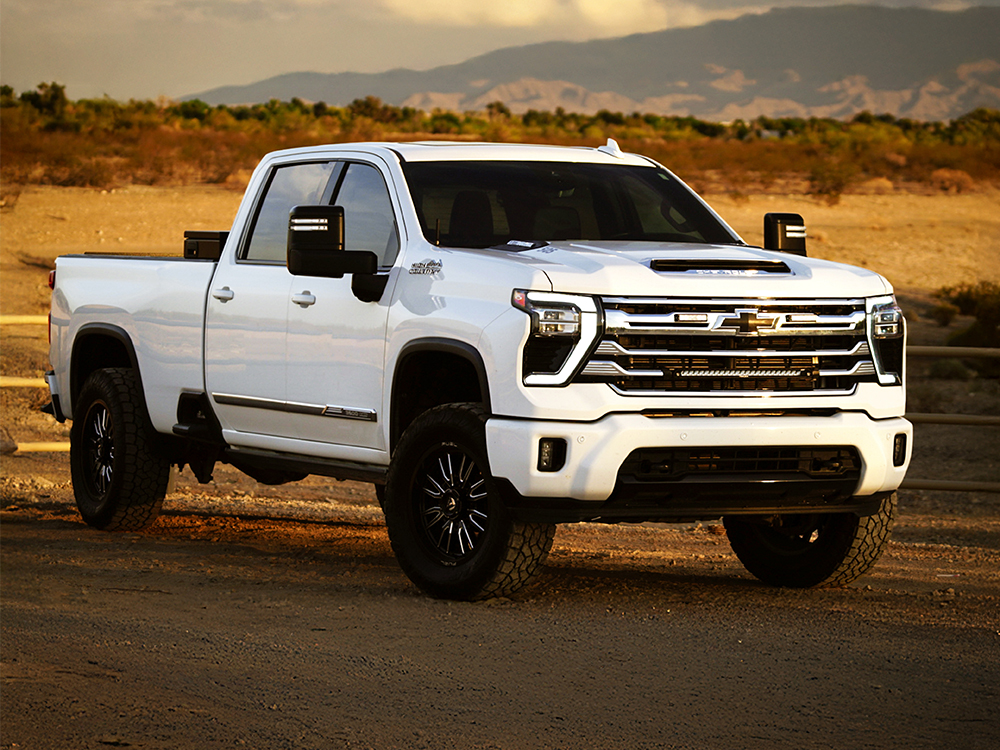

Custom fit for Chevrolet Silverado 2500/3500 High Country (2024+)

Available with: Linear-24 Elite High Performance LED lightbars

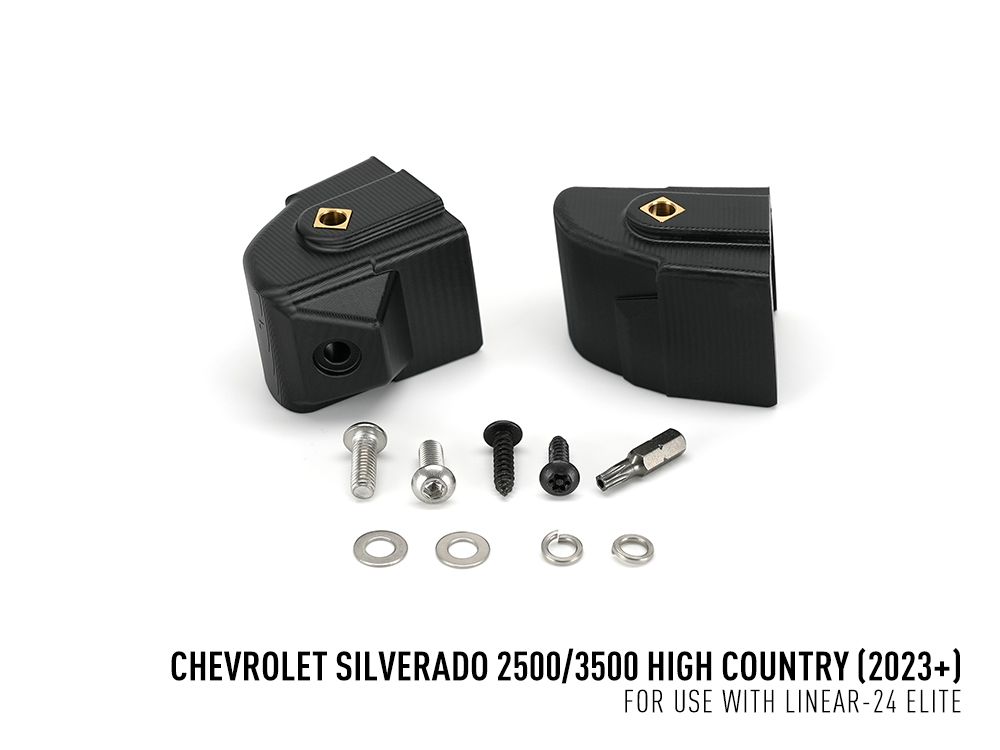

Kit also includes bespoke mounting brackets and one-lamp wiring kit

Cutting guides included

Brackets made from high strength, UV -stable, composite material

5-year warranty

Made in Britain

Technical Specifications


1x LINEAR-24
ELITE


Voltage Range (DC) 10-32V
LED Life 50,000 hrs
Weight 1.1 kg

HIGH BEAM FUNCTION
Total Luminous Flux 18,000 Lm
Total Driver 'FOV' Flux † 12,815 Lm
Colour Temperature 5000K
Power Consumption 188 Watts
Current Draw (14.4V) 14.4 Amps
Connector 2-Pin Superseal
(+25cm Cable)

CERTIFICATION
IP Rating # IP68
High Beam (E9 approval) ECE R112 (Ref: 2x 30)
EMC Certification ECE R10
Salt Spray Test ISO 9227
Dump Load Protection ISO 7637-2

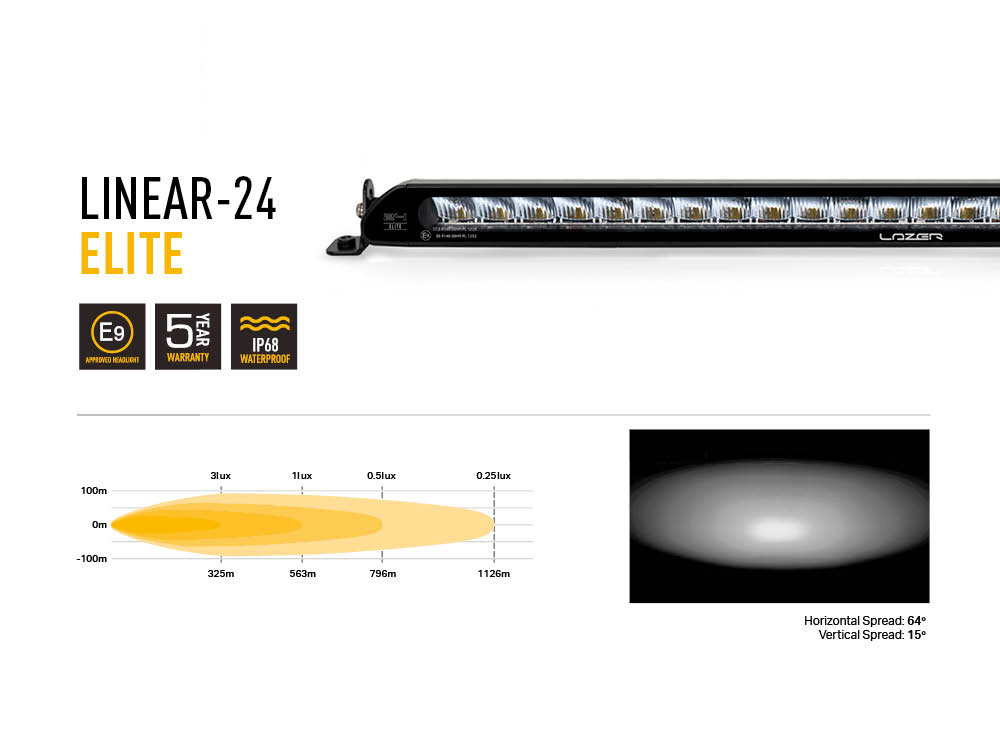

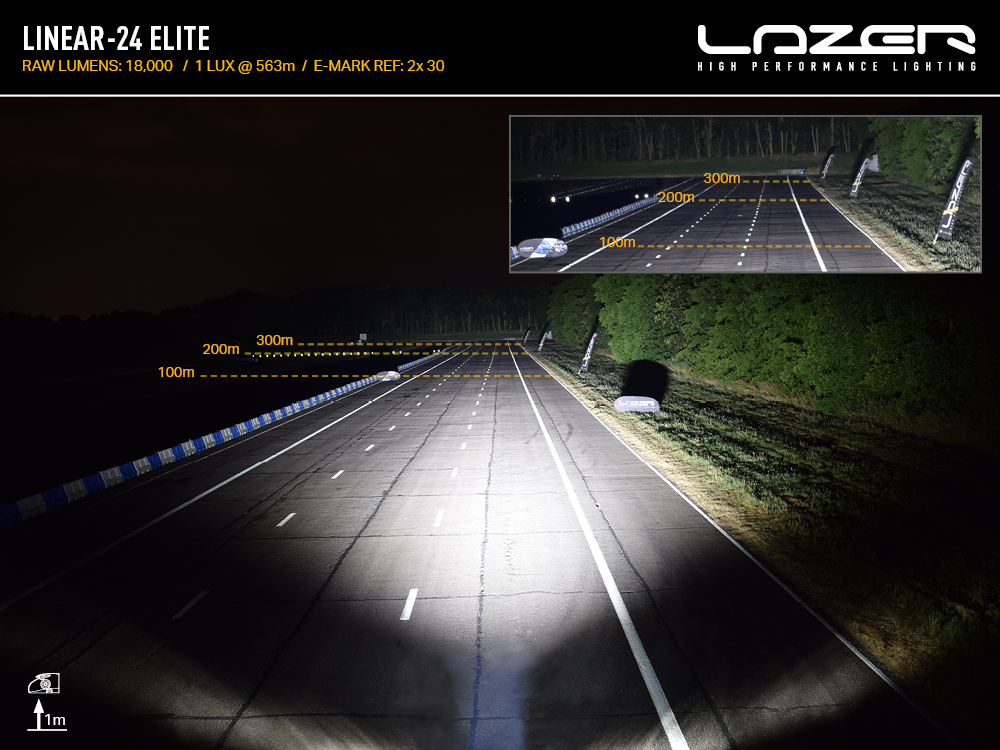

PHOTOMETRIC DATA
Horizontal/Vertical Beam Angle 64° / 15°
0.25 lux 1126m
0.5 lux 796m
1 lux 563m
3 lux 325m


† - Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver’s ‘field-of-view’ defined as an area +/- 45° left/right, and +/- 10° up/down. For more information – click here.

# - All Lazer products are designed to meet the requirements of IP68 testing. Every lamp produced at our UK facility is fully submerged under water prior to sending out.

What's Included

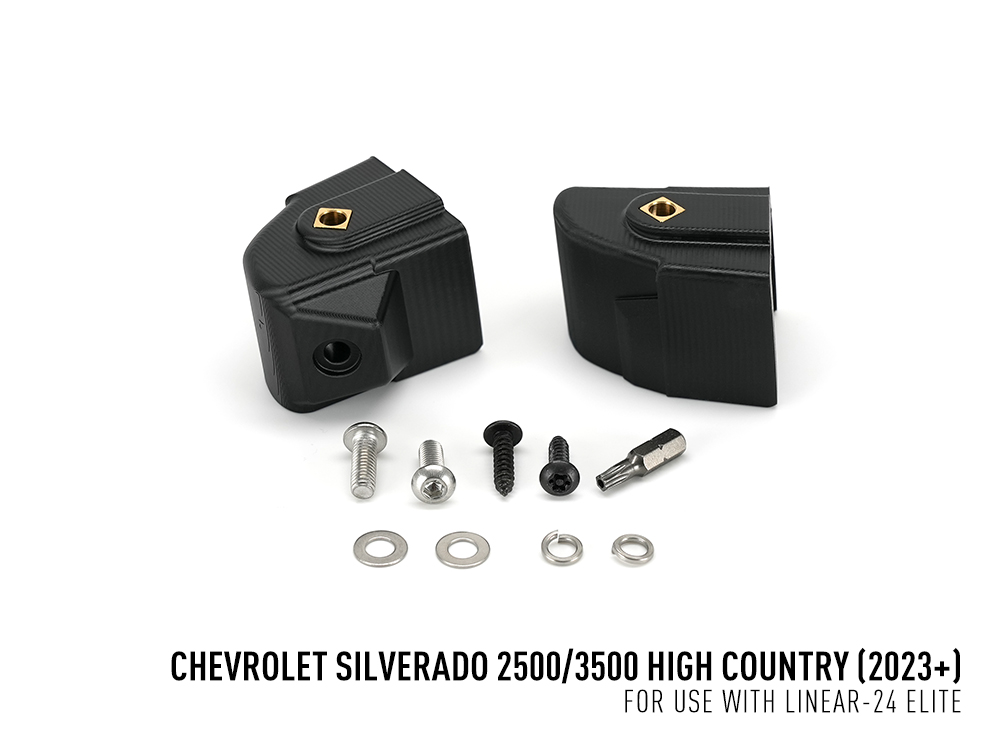

  • 1x Grille Mounting Kit (Includes cutting guides)
  • 1x LED Lightbar (Linear-18/Glide)

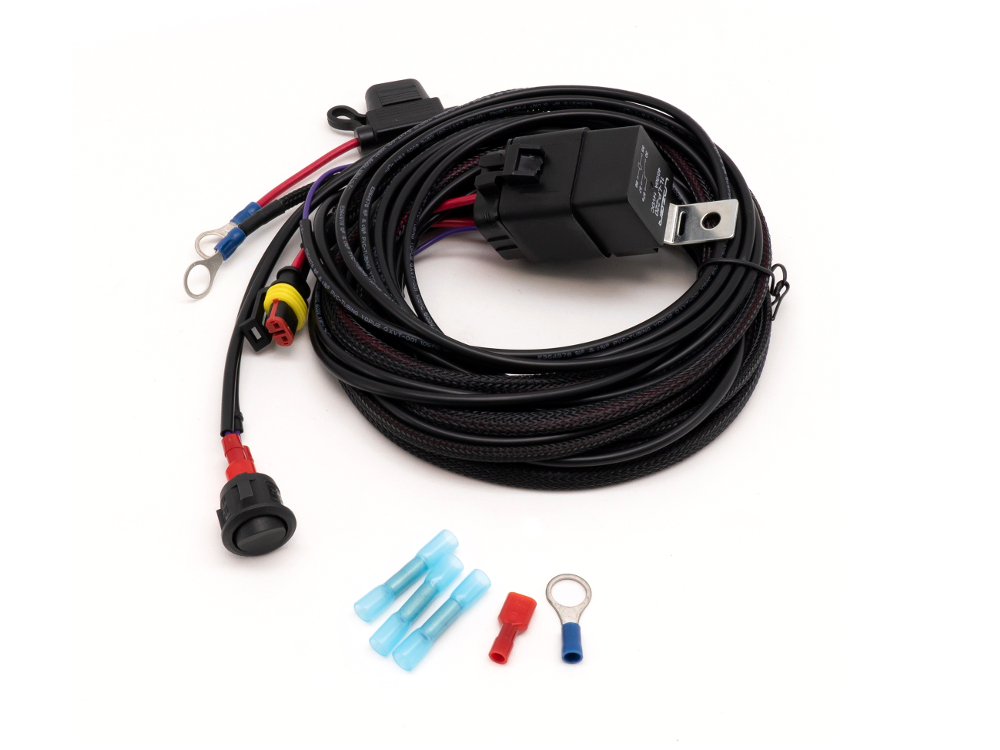

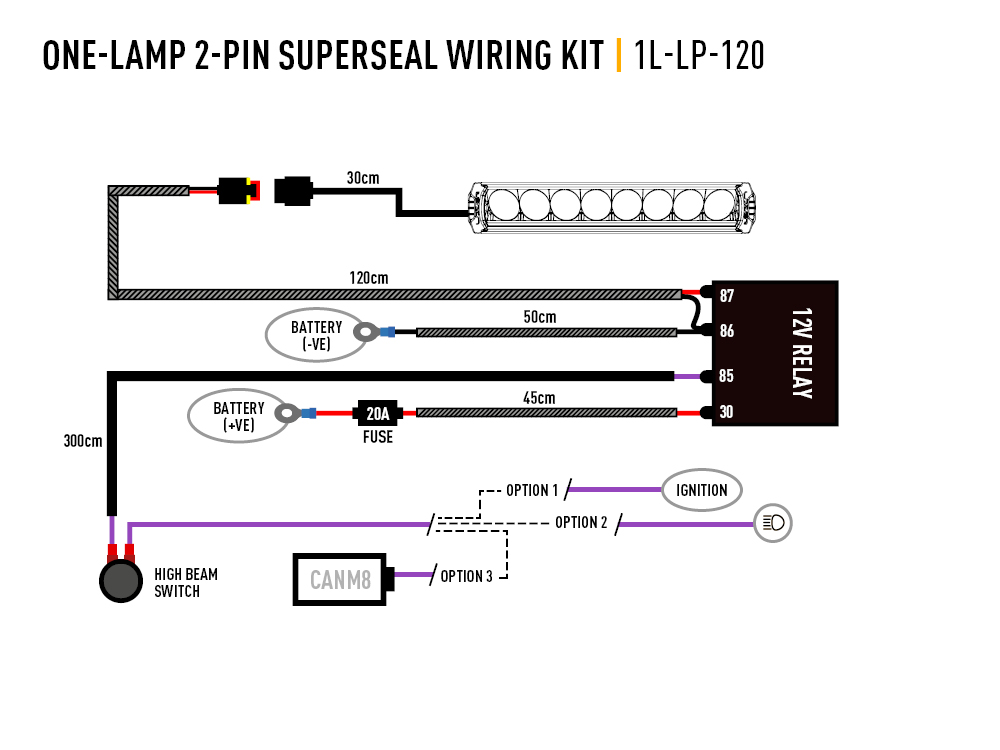

  • 1x One-Lamp Wiring Kit
  • Installation Instructions
Videos

Discover more lighting POV footage, step-by-step installations, and other helpful tips on our YouTube channel — click here to explore!
