Can-Am Maverick X3 (2017+) - Shock Tower Light Bar Mount (Linear-6)

Can-Am Maverick X3 (2017+) - Shock Tower Light Bar Mount (Linear-6)

Be the first to review this product

Product Code

#VIFK-MAVX3-01K

From £230.40

To £402.00

1. Shock Tower Mount Kit - for Linear-6 LED Lightbar *

Qty

2. Lighting Options *

Qty

3. Wiring Kits

Qty

Can-Am Maverick X3 (2017+) - Shock Tower Light Bar Mount (Linear-6)

In stock

Qty

Find a Stockist

£230.40

PAYMENT & DELIVERY
Orders will be shipped within 1 working day (stock permitting). UK customers will be given the option for Standard or Express delivery service. International orders will dispatch via Express Courier Service, on a DAP (Delivered At Place) basis, meaning you will be liable for country specific VAT and import duties. More Information.

Product description

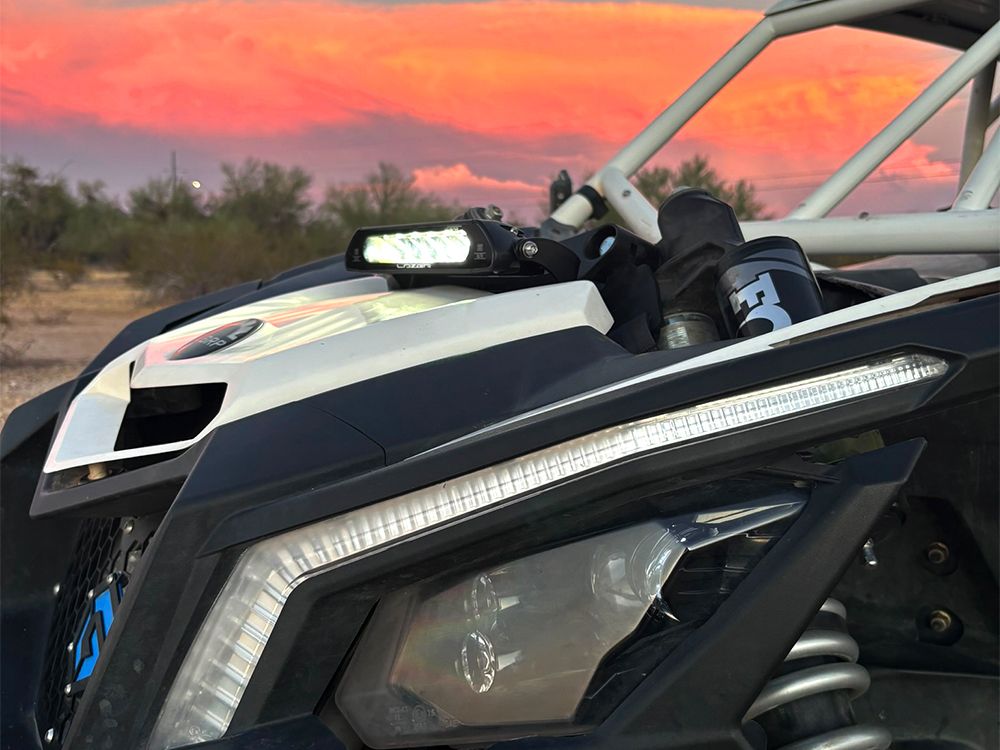

Elevate your Can-Am Maverick X3 (2017-2024) driving experience with our dedicated shock tower light bar mounting kit designed and engineered for the Linear-6 range of LED light bars. The mount bolts directly to the factory shock tower for an easy and robust install, even at high speeds.

The Linear-6 is available in Standard, Elite, or Elite+ grade which boasts white and yellow LEDs to be used independently or in combination – perfect when navigating harsh and rapidly changing off-road conditions. Offering everything from a more cost-effective solution, to the very best in lighting performance considering the diminutive proportions of the Linear-6, and the flexibility and functionality of the Elite+, there’s a solution for all Maverick X3 owners wanting to continue the fun late into the night!

Lights and wiring sold seperately.

Product Features

Produced from 3mm stainless steel with satin black powder coat finish

Supplied with anti-theft lamp mount fasteners

Locates in original shock tower fixtures on the Can-Am Maverick X3 (2017-2024)

Designed for Linear-6 high performance LED lights

Designed & manufactured in the UK

Technical Specifications

	LINEAR-6	LINEAR-6 ELITE	LINEAR-6 ELITE+ (LOW OUTPUT / BOOST)

Voltage Range (DC)	10-32V	10-32V	10-32V
LED Life	50,000 hrs	50,000 hrs	50,000 hrs
Weight	495 gr	495 gr	495 gr

HIGH BEAM FUNCTION
Total Luminous Flux	2250 Lm	4050 Lm	5100 / 2500 Lm
Total Driver 'FOV' Flux †	1602 Lm	2884 Lm	3645 / 1822 Lm
Colour Temperature	5000K	5000K	5000K
Power Consumption	21 Watts	42 Watts	48 W / 24 W
Current Draw (14.4V)	1.5 Amps	2.9 Amps	3.6 A / 1.8 A

CERTIFICATION
IP Rating #	IP68	IP68	IP68
High Beam (E9 approval)	ECE R112 - Ref: 12.5	ECE R112 - Ref: 17.5	ECE R149 - Ref 12.5 (Low Output Mode only)
EMC Certification	ECE R10	ECE R10	ECE R10
Salt Spray Test	ISO 9227	ISO 9227	ISO 9227
Dump Load Protection	ISO 7637-2	ISO 7637-2	ISO 7637-2

PHOTOMETRIC DATA
Horizontal / Vertical Beam Angle	56° / 13°	64° / 15°	84° / 18°
0.25 lx Line	494 m	563 m	600m / 424m
0.5 lx Line	349 m	398 m	424m /300m
1 lx Line	247 m	282 m	300m / 212m
3 lx Line	143 m	163 m	173m / 122m

† - Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver's 'field-of-view' defined as an area +/- 45° left/right, and +/- 10° up/down. For more information – click here.

# - All Lazer products are designed to meet the requirements of IP68 testing. Every lamp produced at our UK facility is fully submerged under water prior to sending out.

Whats included

x1 Shock Tower Mount (for Linear-6) Anti-Theft Fastener Set

Downloads

Downloads
CLICK BELOW TO DOWNLOAD (OPENS PDF IN NEW WINDOW) Linear-6 - Product Information Sheet(1.78 MB) Linear-6 Elite - Product Information Sheet(1.84 MB) Linear-6 Elite+ - Product Information Sheet(1.85 MB) CAN-AM Maverick X3 - Shock Tower Mount Kit - Fitting Instructions (2.67 MB)
